Connector Locations

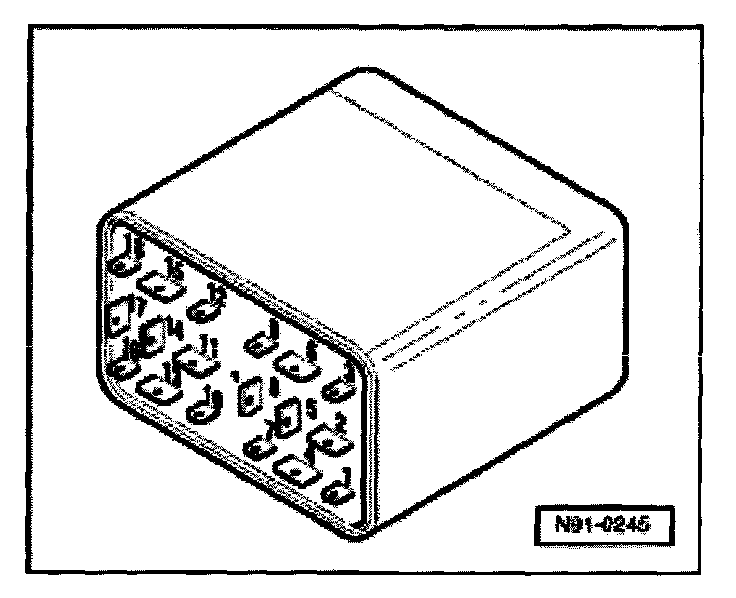

Control Module For Multi-Function Steering Wheel Multi-pin Connector Assignments







1 - Comfort CAN Bus - Low
2 - Open
3 - Comfort CAN Bus - High
4 - Open
5 - Radio, serial data
6 - Data Link Connector (DLC) K-wire
7 - Cruise Control System (CCS) resume, accelerate
8 - CAN Bus Ground (GND)
9 - Open
10 - Ground (GND), terminal 31
11 - Double tone horn relay
12 - Terminal 15
13 - Terminal 30
14 - Open
15 - Terminal 58d
16 - Cruise Control System (CCS) + (SET/ delay)
17 - Heating inlet "ON"
18 - CAN Bus to Control module steering wheel -E221-
