Coolant Temperature Sensor / Switch HVAC: Description and Operation

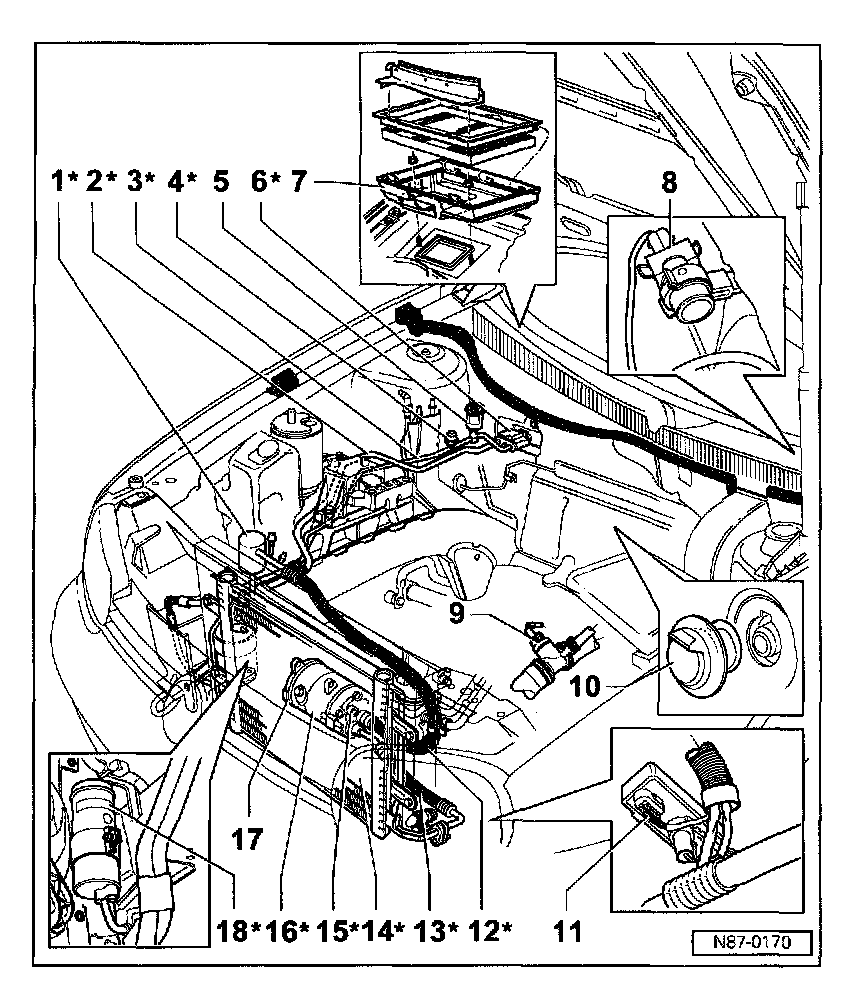

A/C cut-out thermal switch -F163- (Item # 9 in image)
- Switches off A/C clutch -N25- at excessively high coolant temperatures.
- Off at 119 °C (246 °F)
- On at 112 °C (234 °F).
