Electronic Brake Control Module: Diagrams
ABS Control Module (w/EDL):

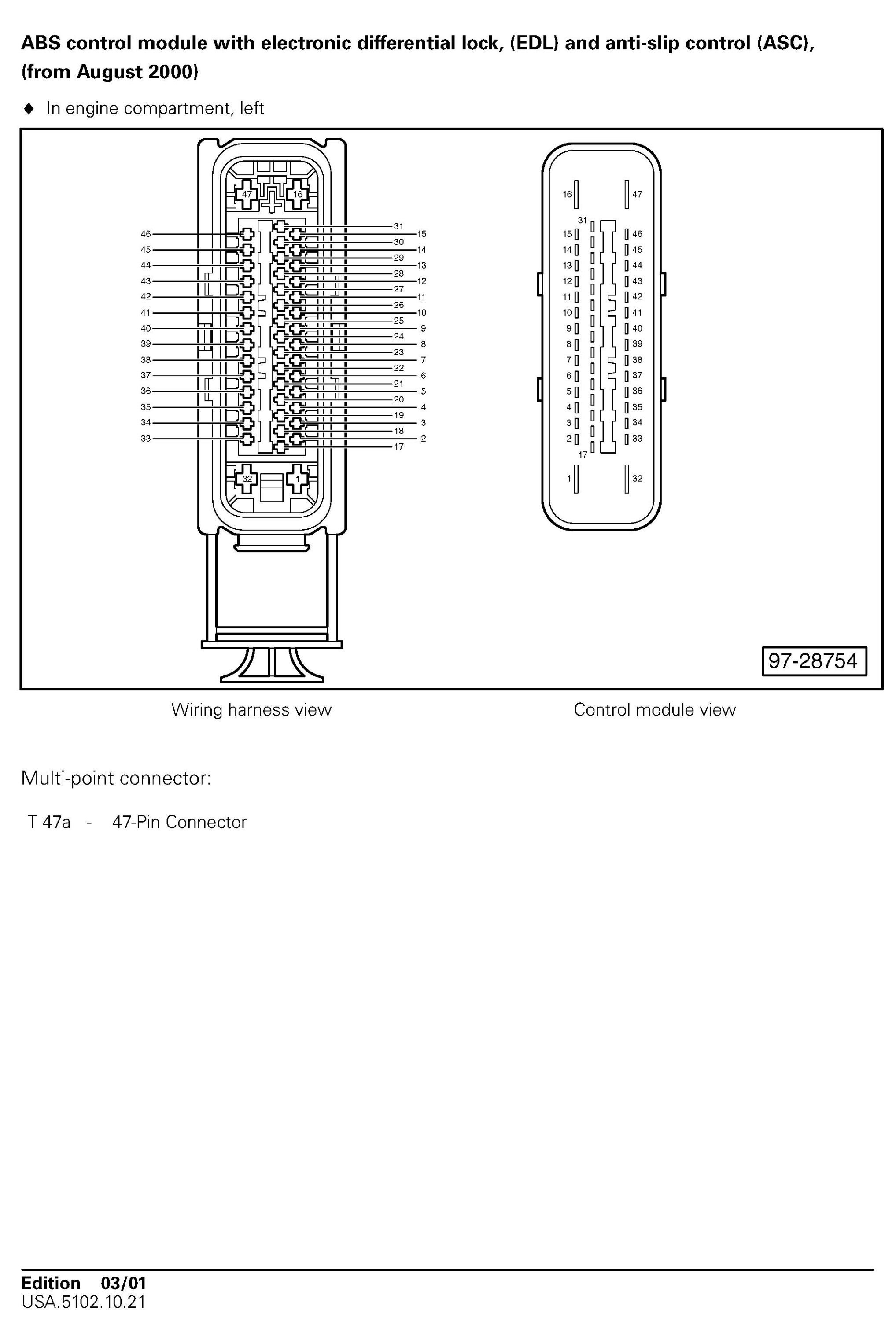

ABS Control Module W/Electronic Differential Lock And Anti-slip Control (ASC) From August 2000:
Control Modules - Connector Pin-out
