Display Groups 120-129 (Communication)




- Driving operation

Indicated on display

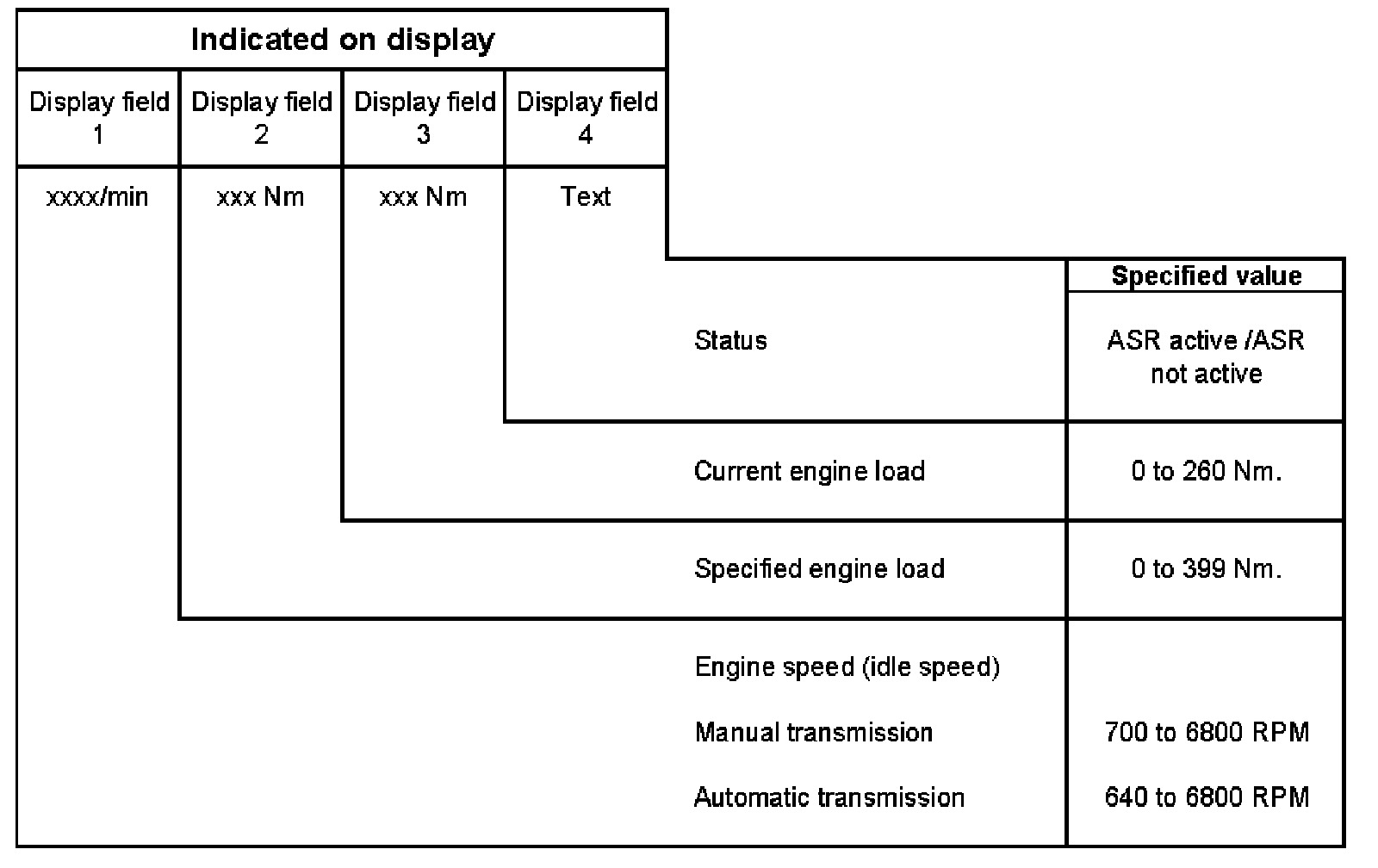

Read Measuring Value Block 120 ->


Display Group 120:






- Driving operation

Indicated on display

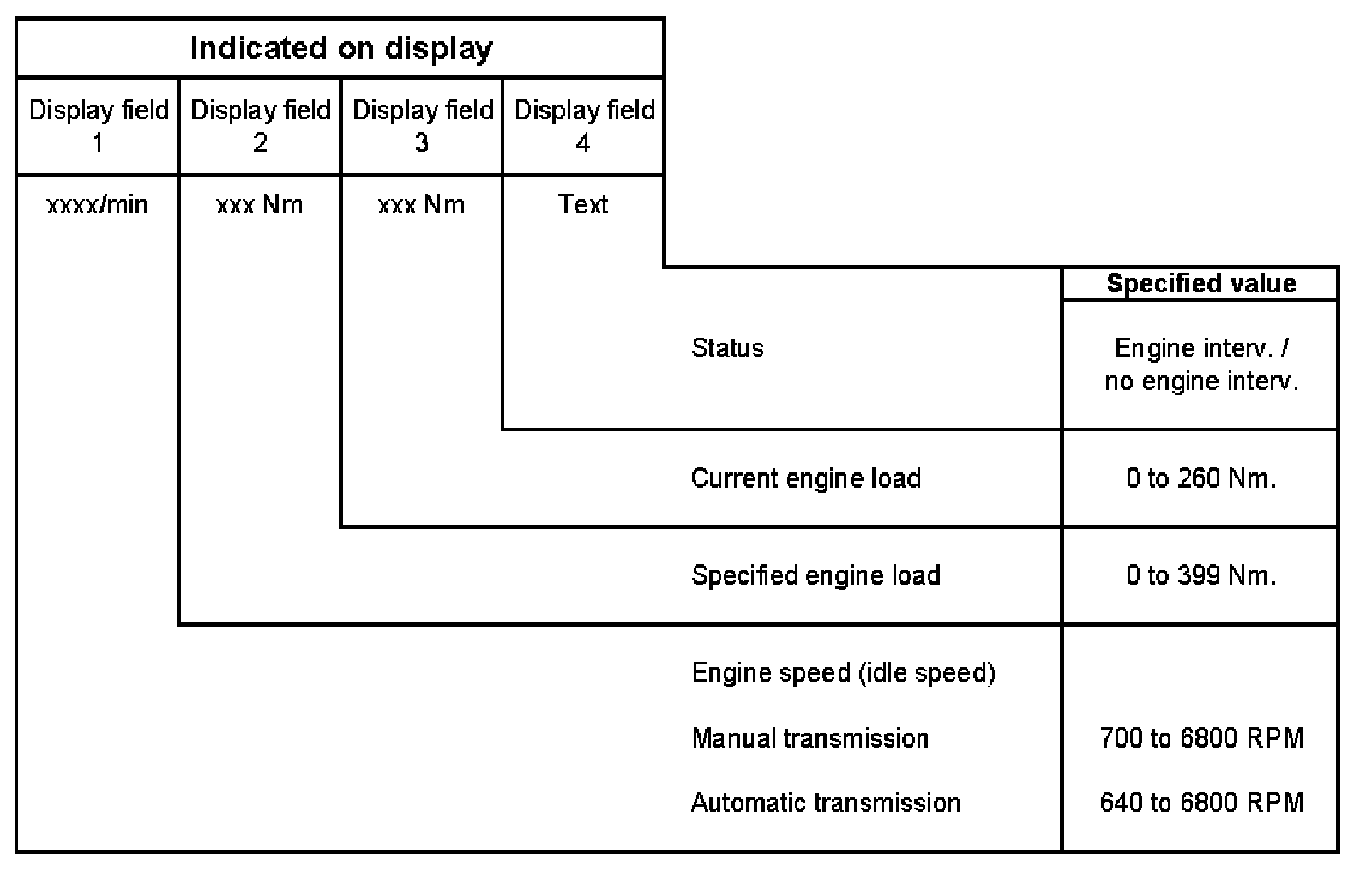

Read Measuring Value Block 122 ->


Display Group 122:






- Engine running at idle

Indicated on display

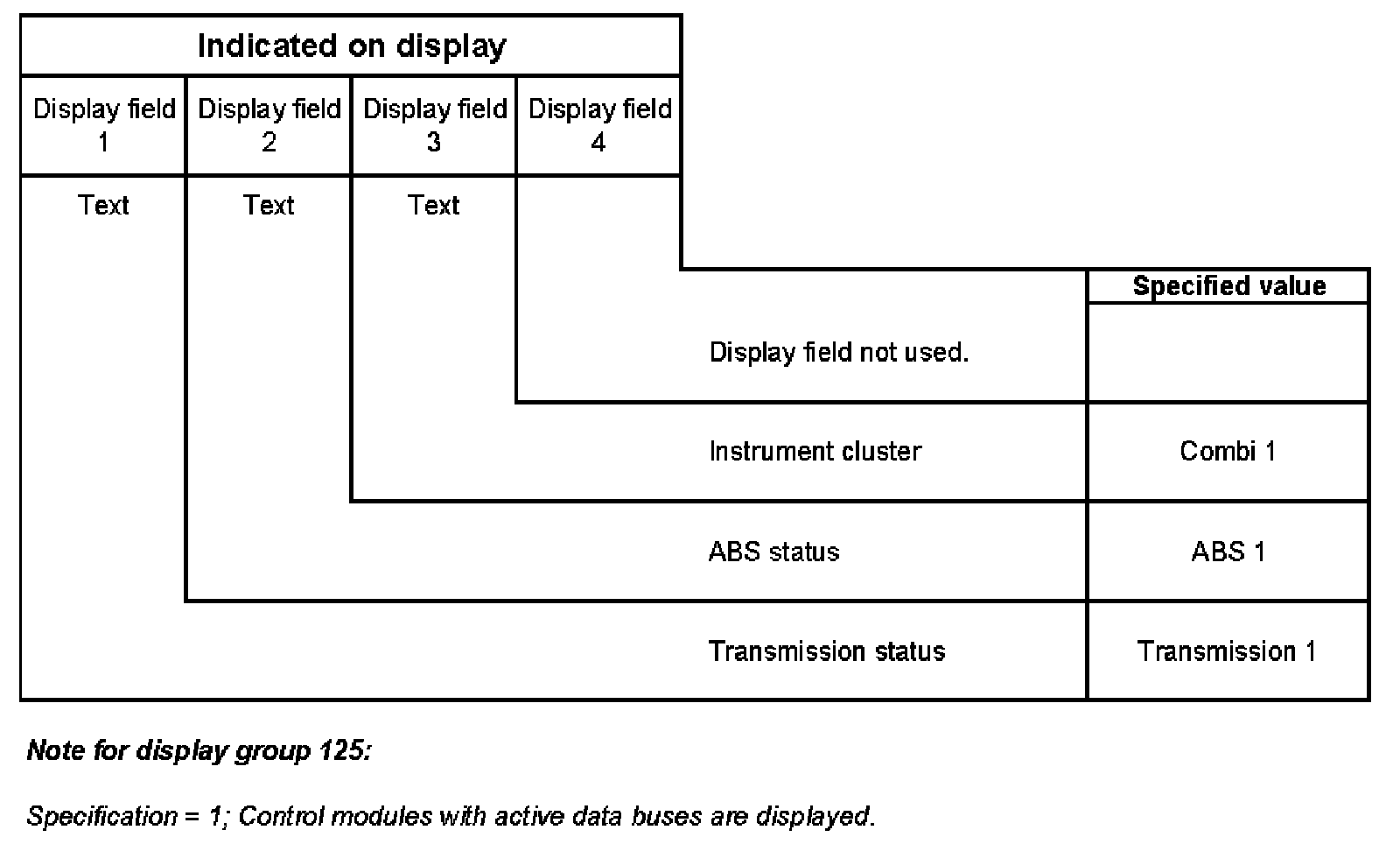

Read Measuring Value Block 125 ->


Display Group 125:
