Display Groups 10-29 (Ignition)

- Engine running at idle

Indicated on display


Read Measuring value Block 10 ->

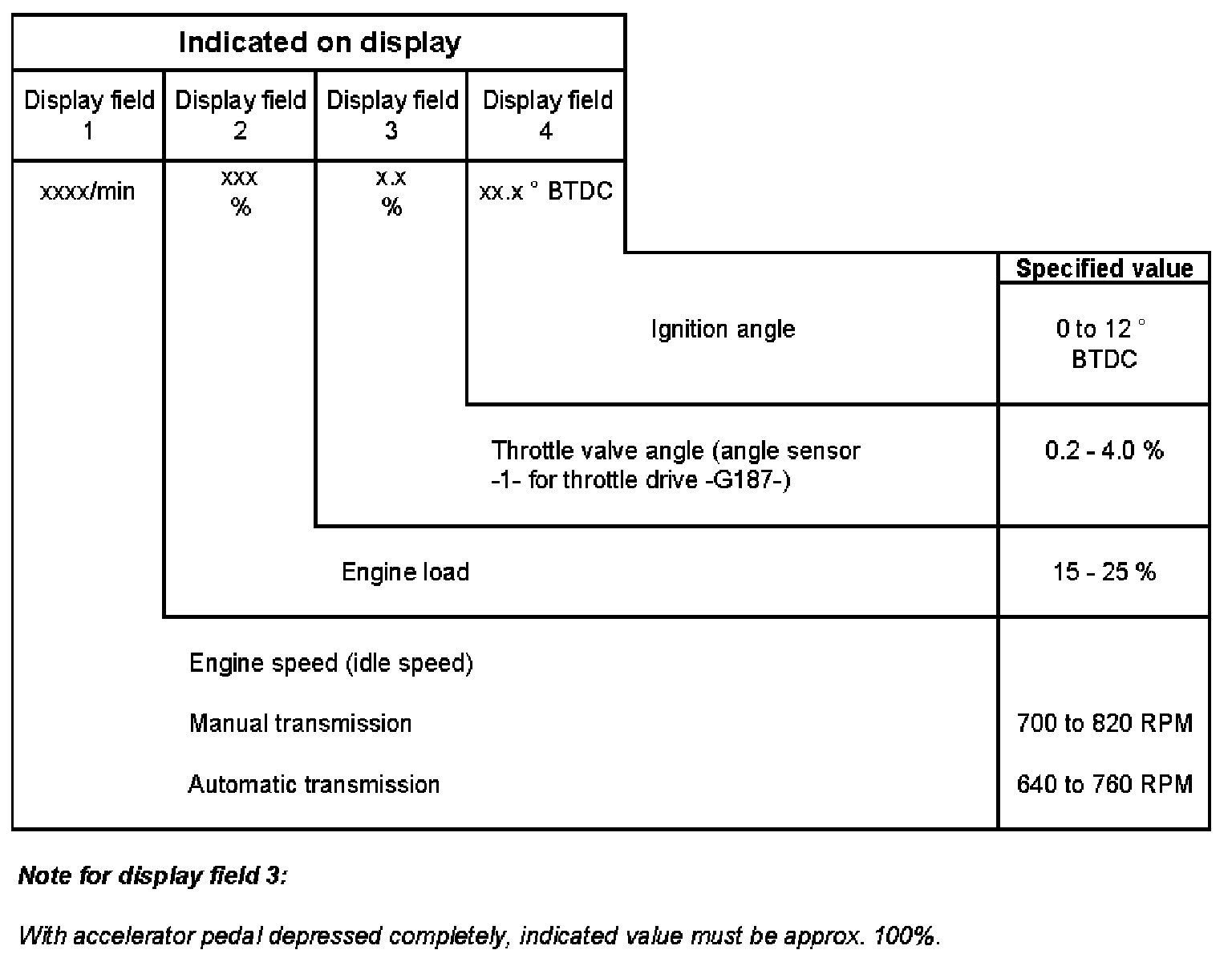

Display Group 10:

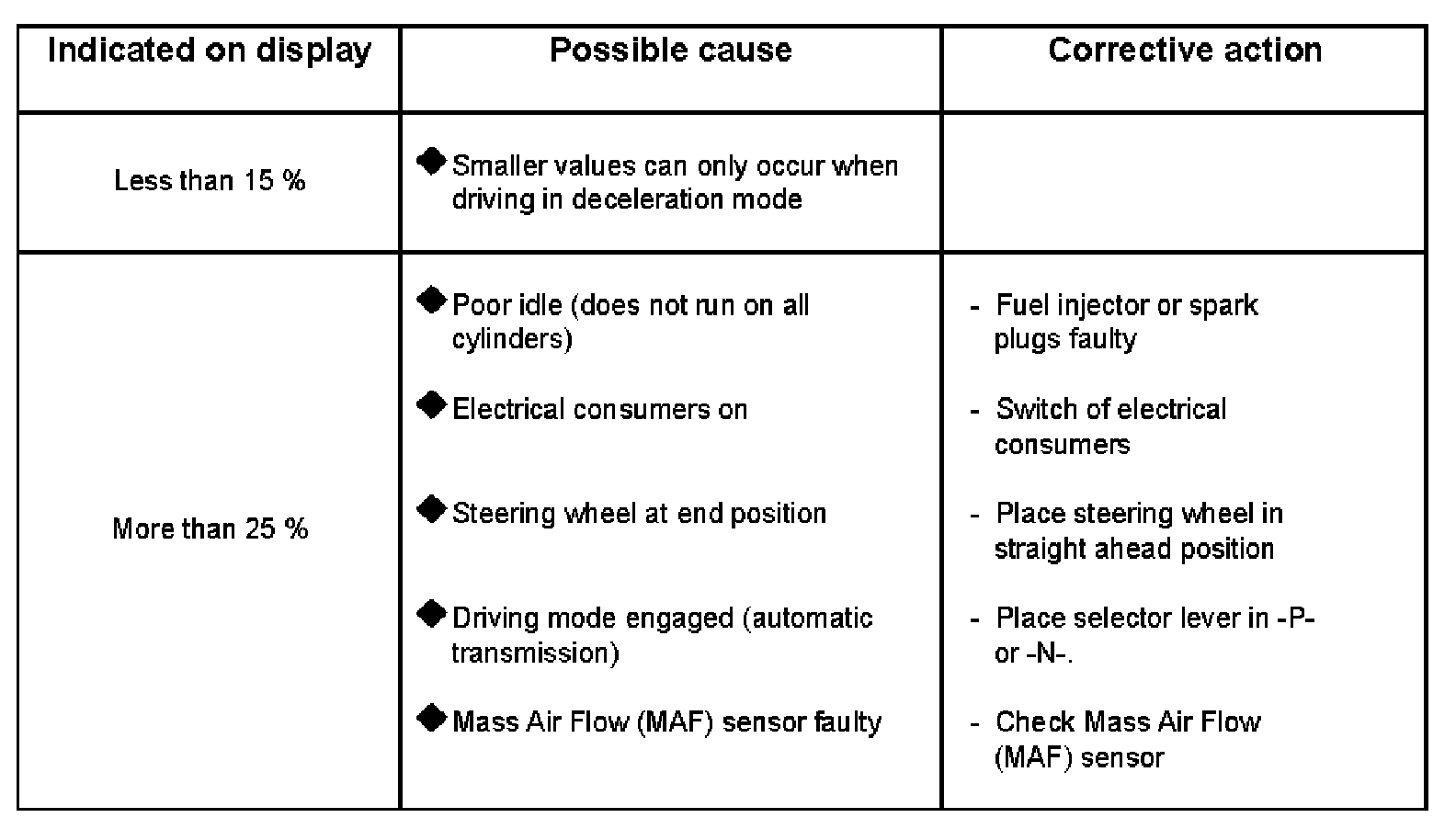

Evaluation display group 10, display field 2 - engine load

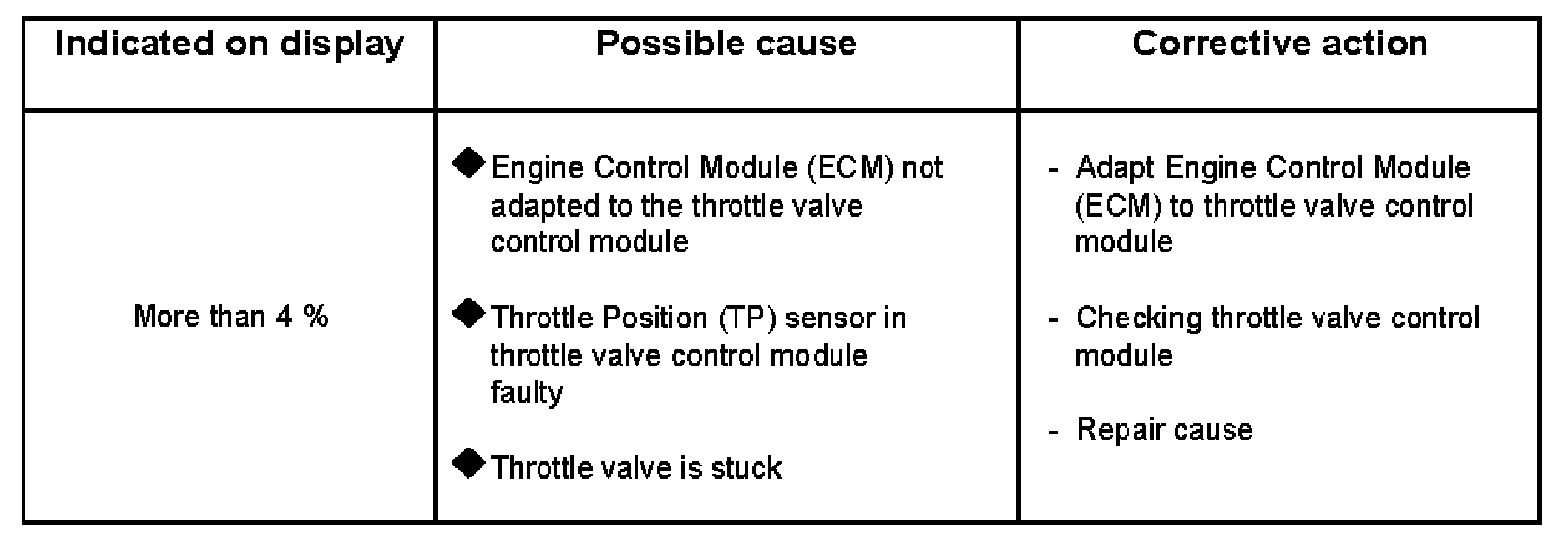

Evaluation display group 10, display field 3 - throttle valve angle







- Engine running at idle

Indicated on display


Read Measuring Value Block 14 ->

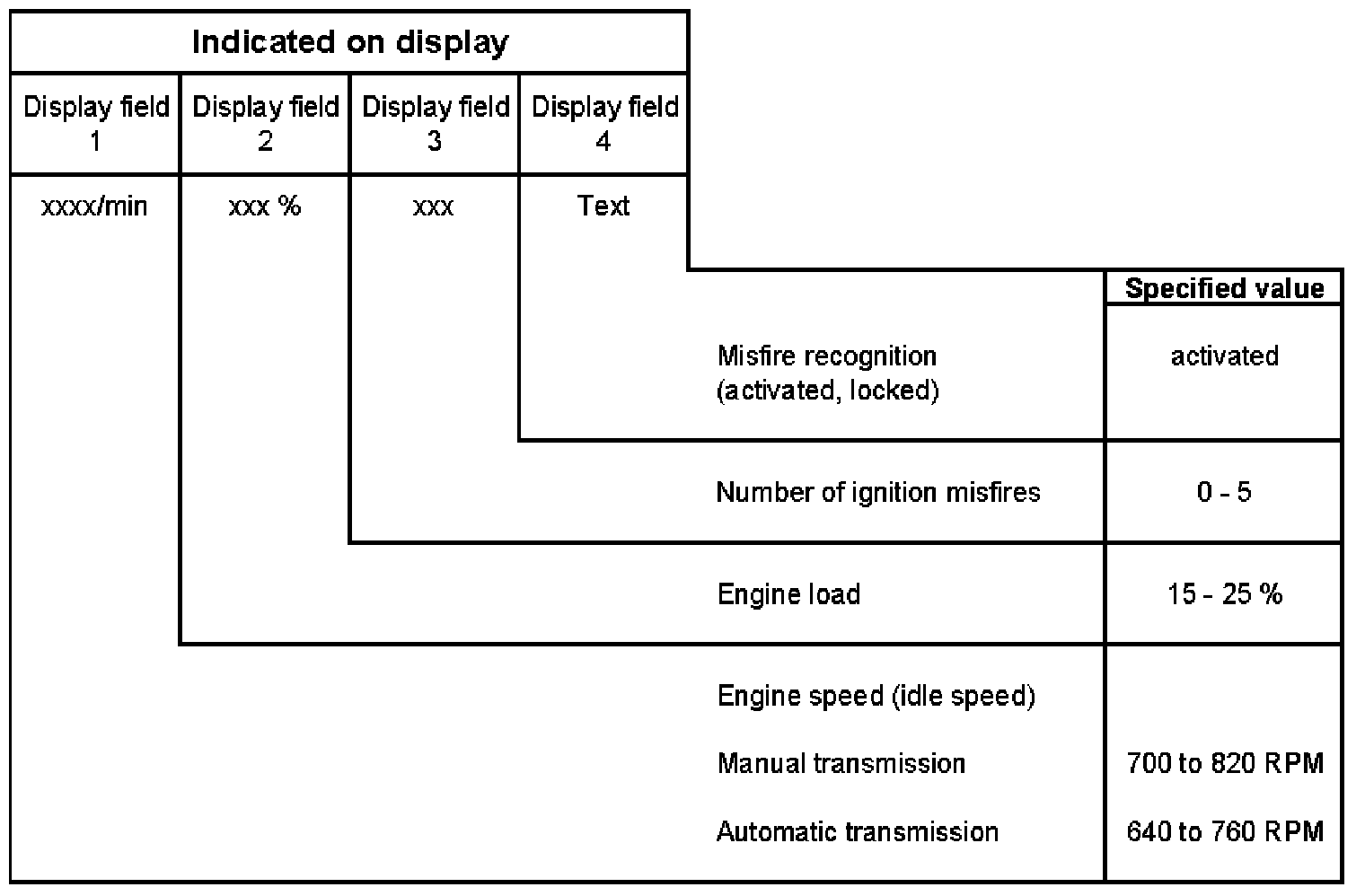

Display Group 14:

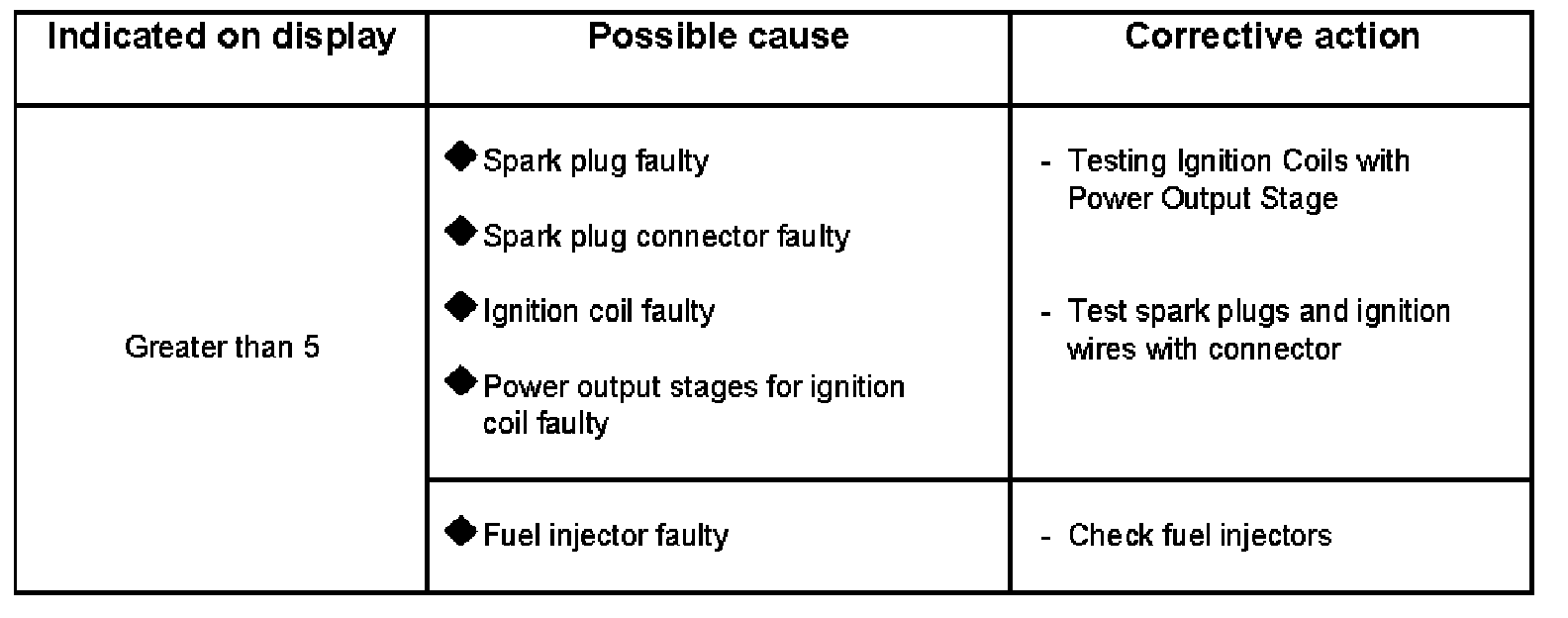

Evaluation display group 14, display field 3 - number of ignition misfires







- Driving operation

Indicated on display


Read Measuring Value Block 22 ->

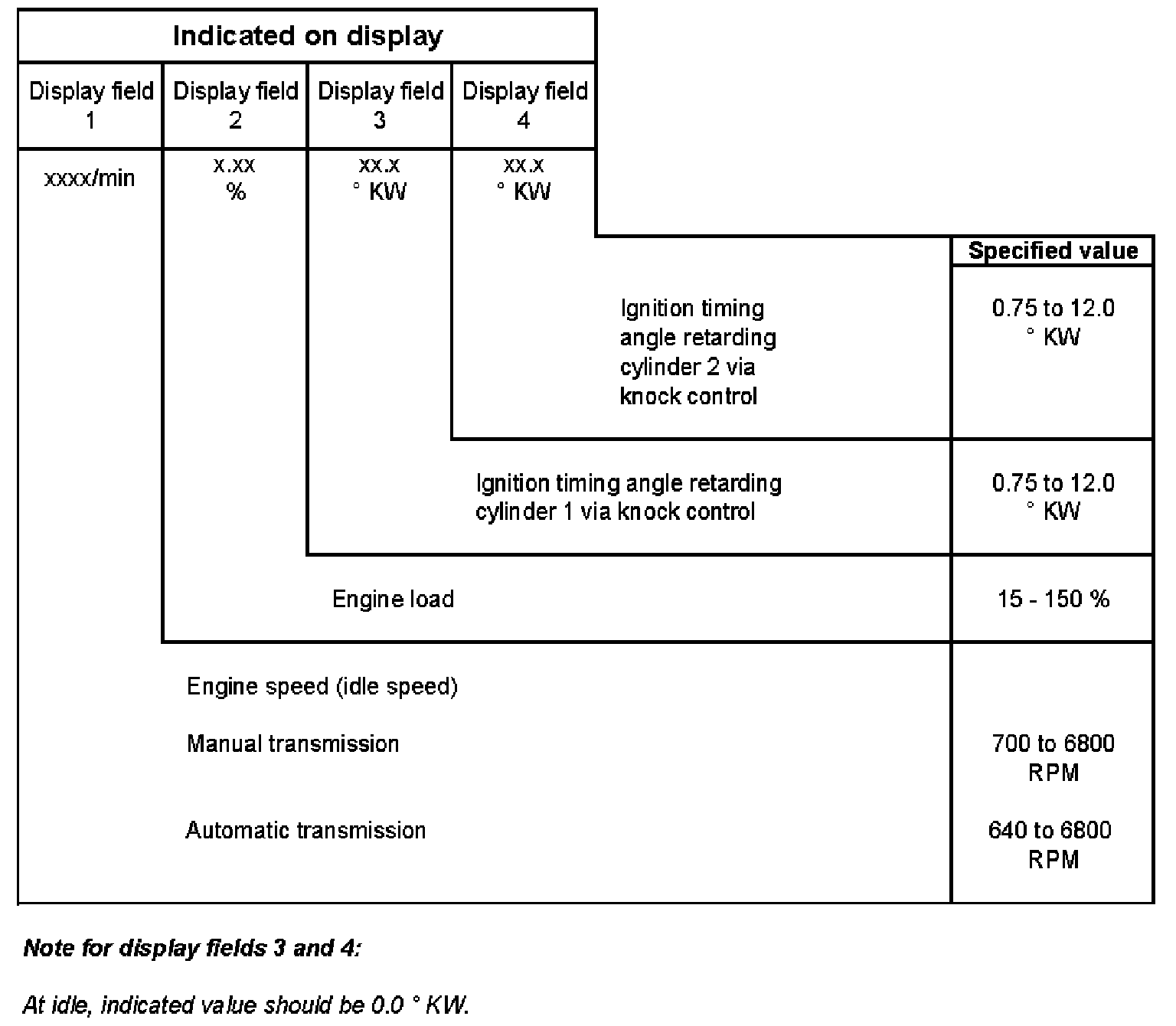

Display Group 22:

- Driving operation

Indicated on display


Read Measuring Value Block 23 ->

Display Group 23:

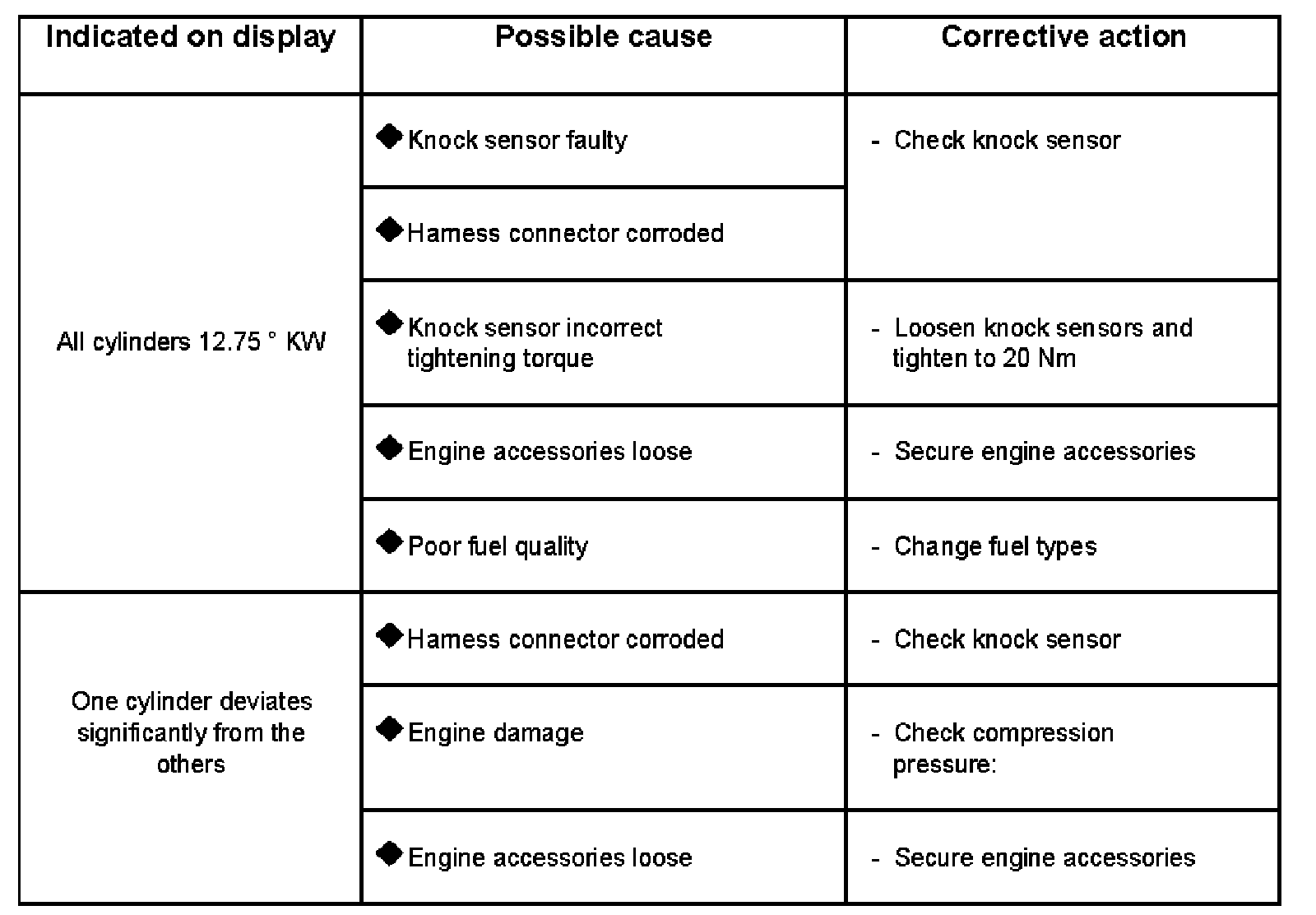

Evaluation display groups 22/23, display fields 3 and 4 - ignition timing angle retarding







- Driving operation

Indicated on display


Read Measuring Value Block 28 ->

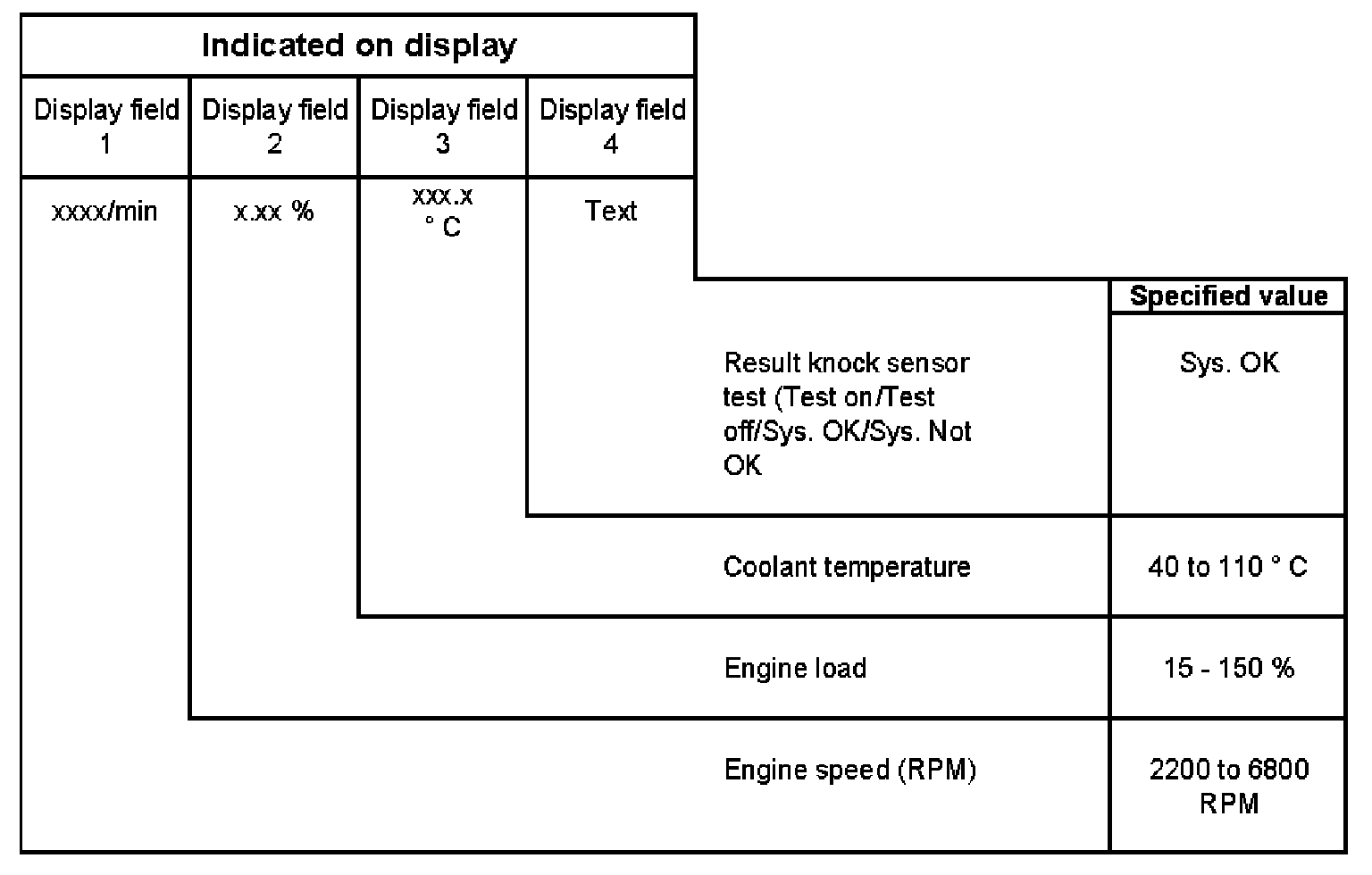

Display Group 28:
