Parking/Turn Signal Bulb, Replacing

Parking/turn Signal Bulb, Replacing

- Switch off all electrical consumers, switch off ignition key and remove ignition key.

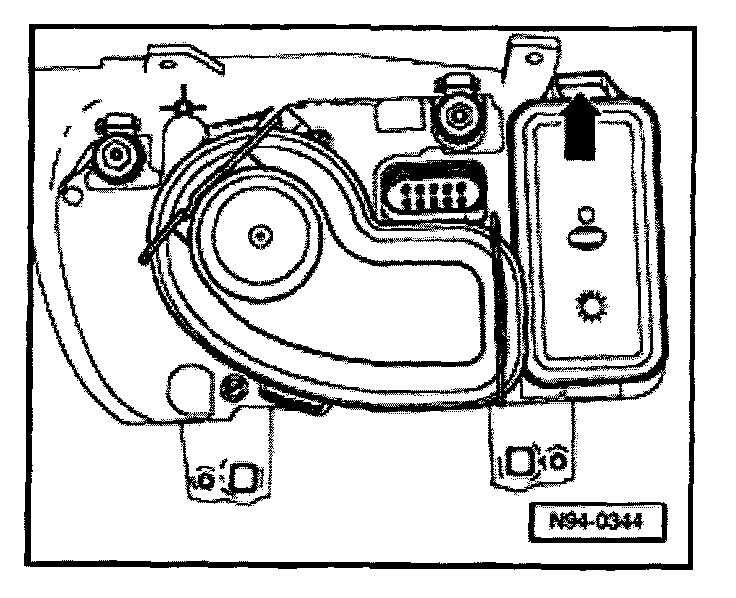

- Release spring clip -arrow- and remove sealing cover.

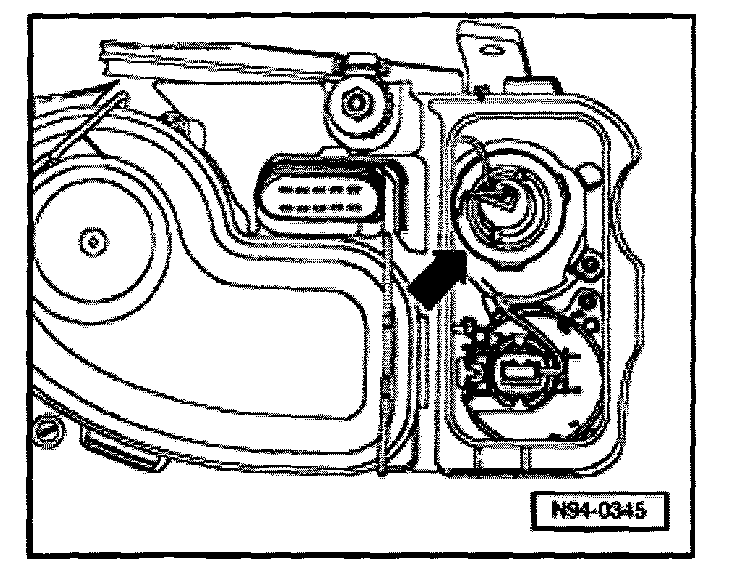

- Turn bulb holder -arrow- to left and pull out of housing.
- Remove bulb from the holder.

Install in reverse order of removal.

NOTE: When installing, ensure bulb holder engages in bulb housing.

- Install sealing cover.
- Check turn signal (bulb) function.
