Front Turn Signal Bulb, Replacing

CAUTION: Do not touch bulb glass when installing a new bulb. Fingers leave traces of grease on the glass, which evaporate when bulb is switched on, causing glass to cloud over.

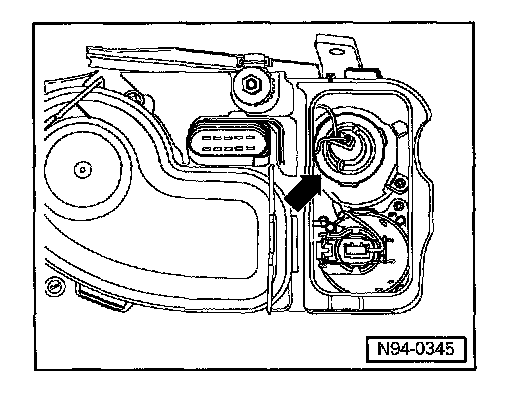

- Turn bulb holder (arrow) to left and pull out of housing.
- Remove bulb from housing.

Installation is in reverse order of removal.

NOTE: Be sure bulb holder engages in housing when installing.

- Attach sealing cap.
- Always check turn signal function after installing new bulb.
