Headlamp Bulb: Service and Repair

Headlight Bulbs (Jetta), Replacing

Double filament low/high beam bulb, replacing


CAUTION!

Do not touch glass portion of bulb with bare hands. Even the smallest amount of moisture and/or contaminants from fingers that evaporates on the bulb during operation can cause the glass to cloud over.


NOTE: If headlight washer system is present, move hoses to one side if necessary.

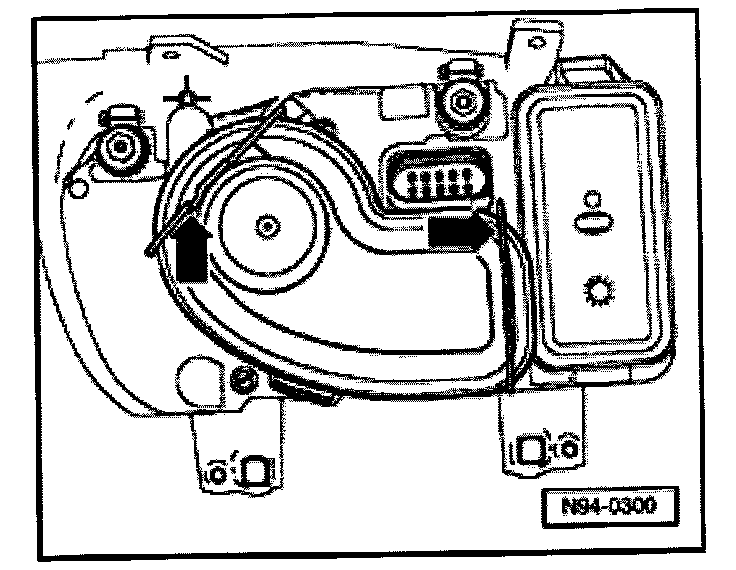

- Release spring clip -arrow- and remove sealing cover.

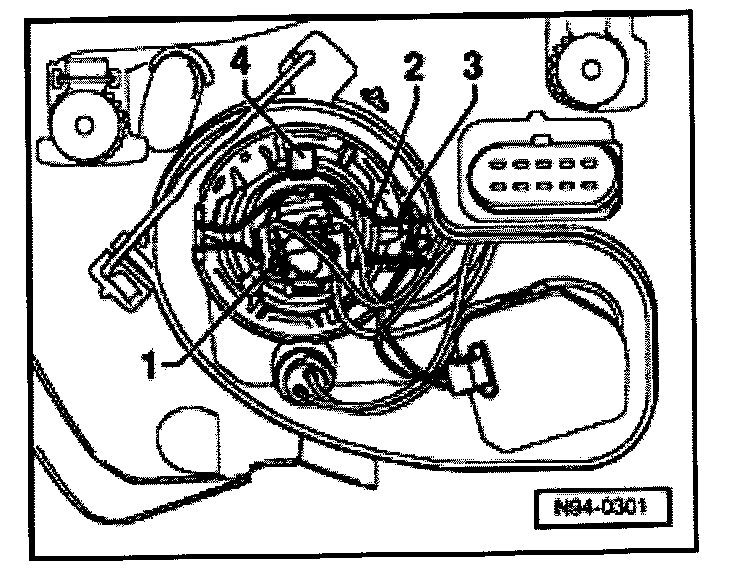

- Disconnect electrical connector -1- from bulb.
- Push retaining clip -2- over lugs -3- and release.
- Pull bulb -4- out of reflector.
- Do not touch bulb glass when installing.
- Insert new bulb so lugs on bulb plate align with cut-outs in reflector.
- Connect electrical connector -1-.
- Install sealing cover.
- Check headlight low and high beam (bulb) function.
