Glove Box Lamp: Service and Repair

Glove Box Light -W6-, Removing And Installing

Removing

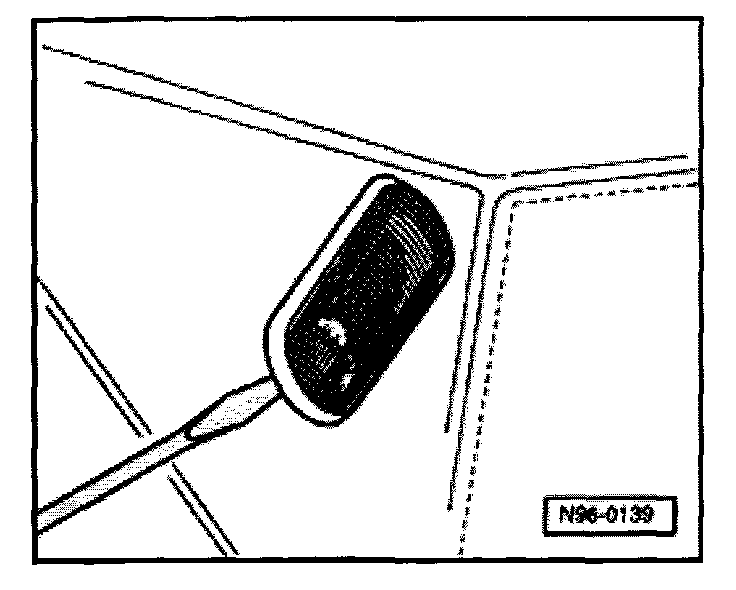

- Insert screwdriver behind lens and carefully pry outwards.
- Remove lens with bulb holder and microswitch
- Replace 12V/3W bulb

Installing
- Insert lens with bulb holder and microswitch in glove box and clip-in.

Perform functional check of light and switch:
Lamp must go out with glovebox lid closed.
