High-Mount Brake Light, Removing and Installing



High-mount Brake Light (Jetta), Removing And Installing

The high-mount brake light is installed in the rear shelf.

Removing

- Switch off all electrical consumers, switch off ignition key and remove ignition key.

- Disconnect electrical connector from high- mount brake light.
- Remove rear shelf

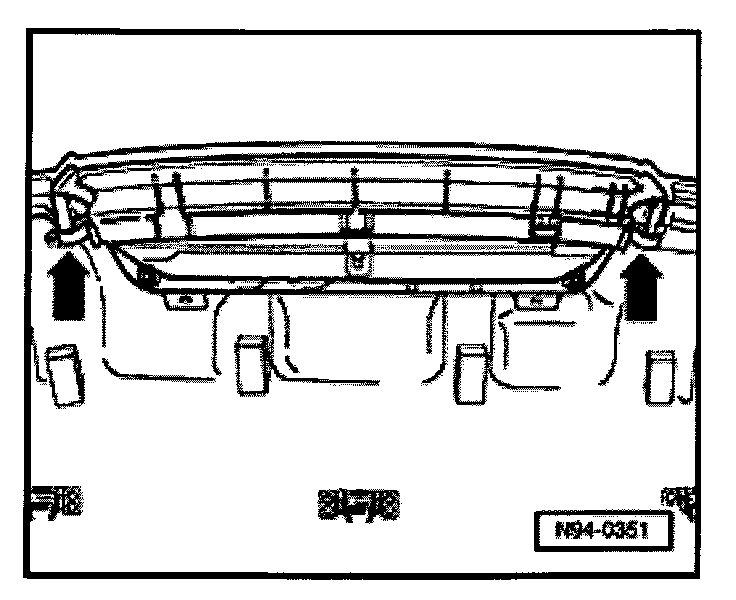

- Unclip high-mount brake light from rear shelf -arrows-.
