Jetta Sedan (9M2) L4-1.8L Turbo (AWD)
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Scan Tool Testing and Procedures
>>
Measuring Value Blocks (Function 08)
>>
Interpreting Display Groups
Interpreting Display Groups
Display Groups, Interpreting
Display Group 001:

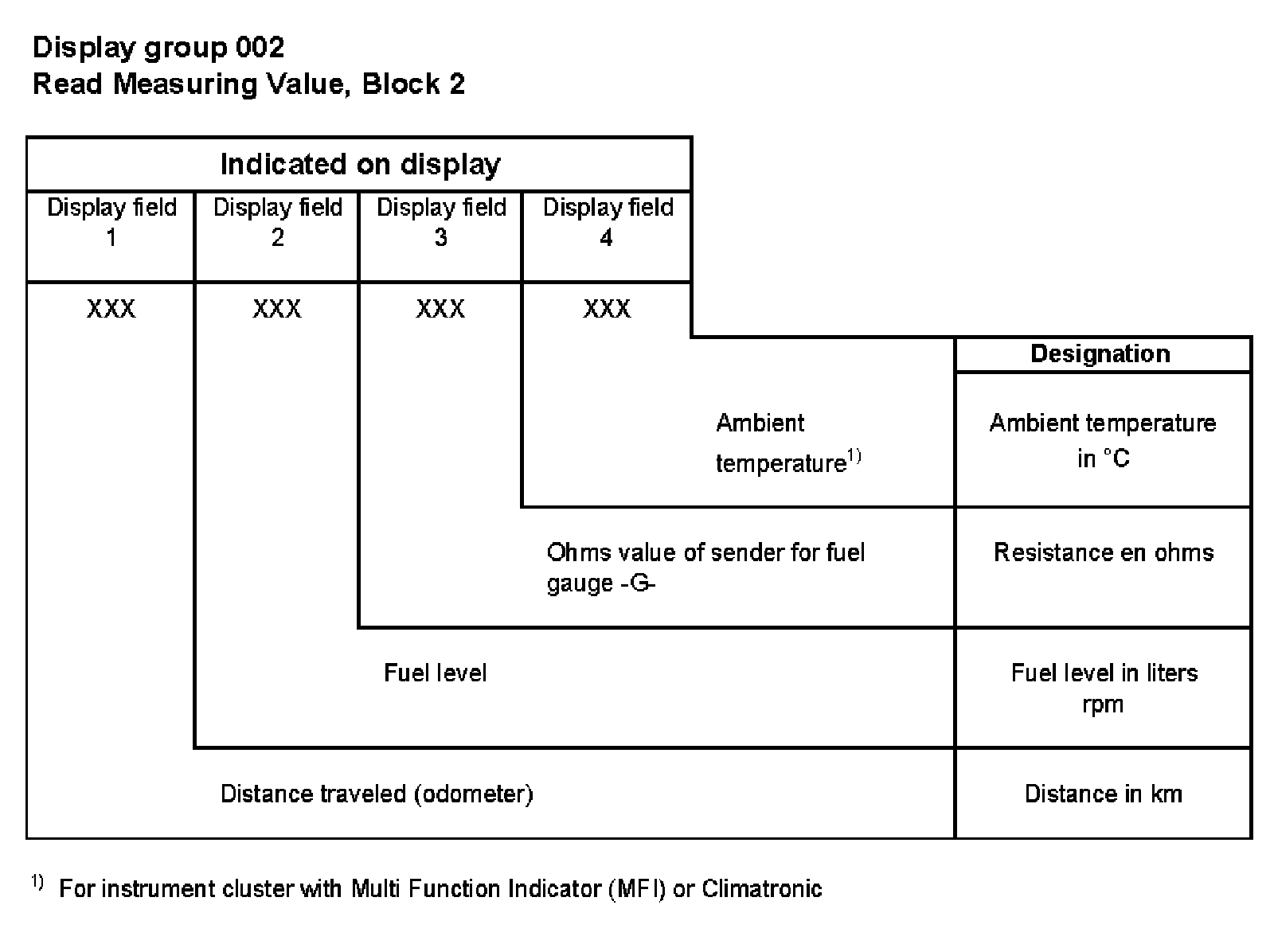

Display Group 002:

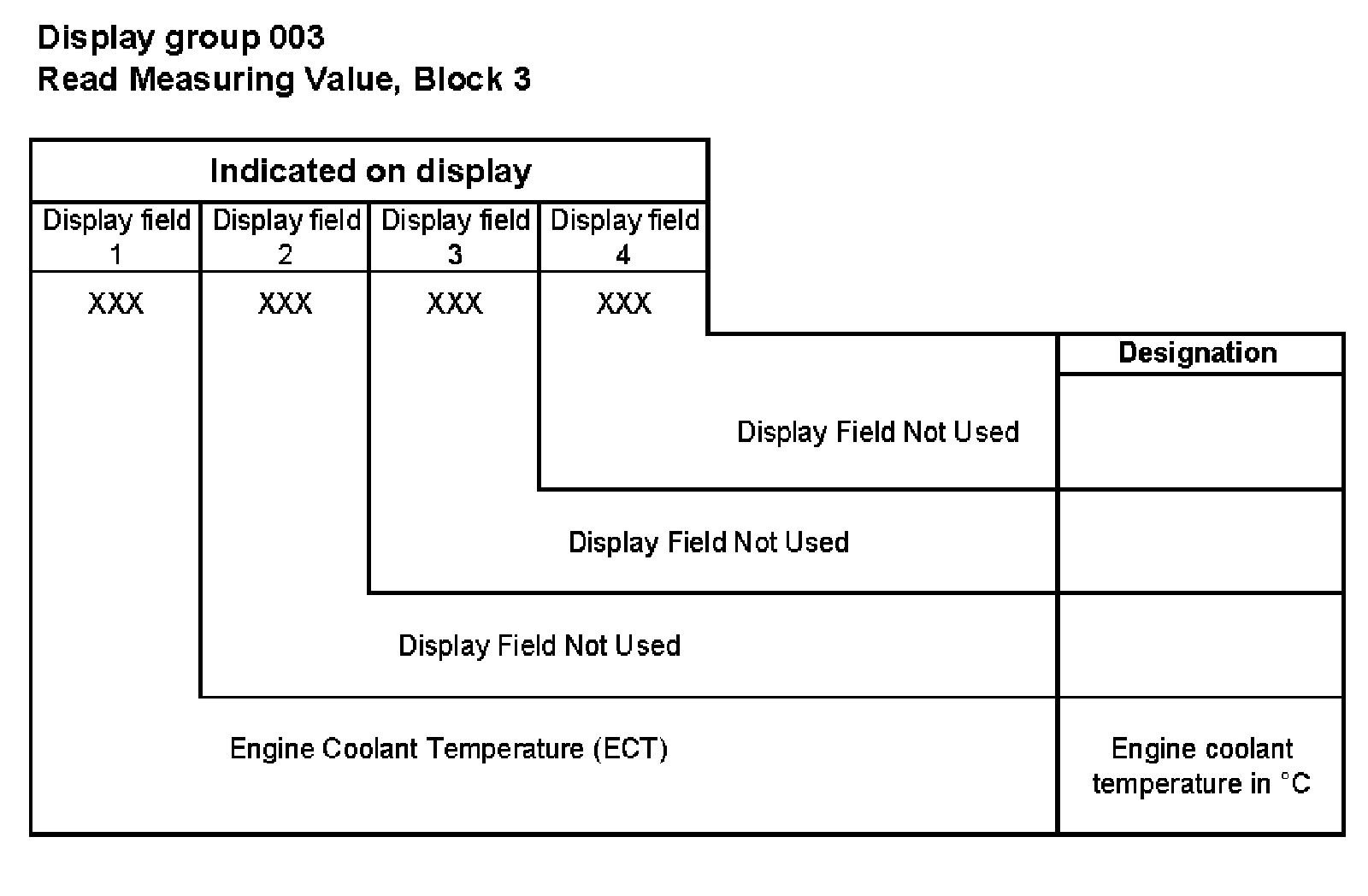

Display Group 003:

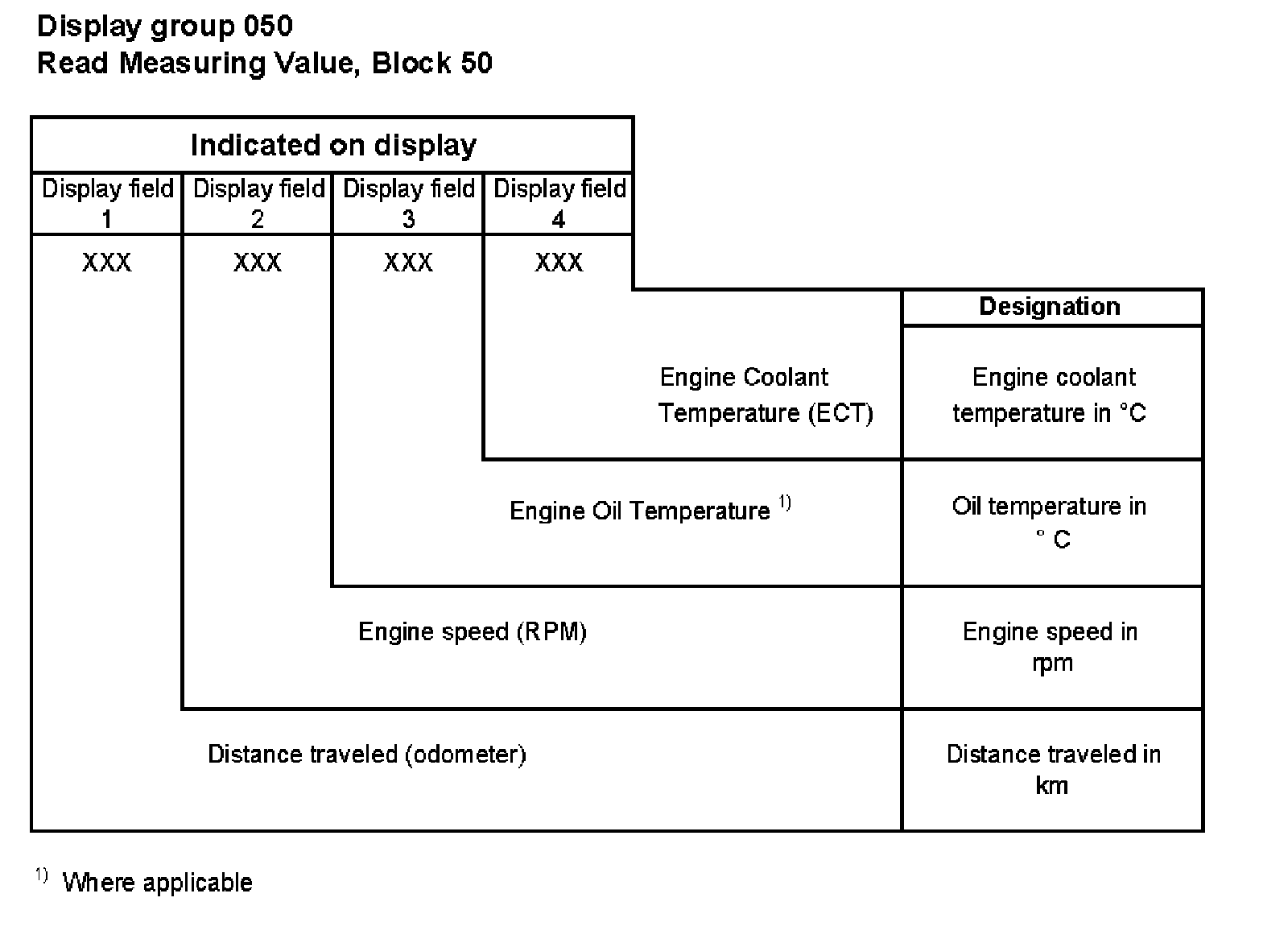

Display Group 050:

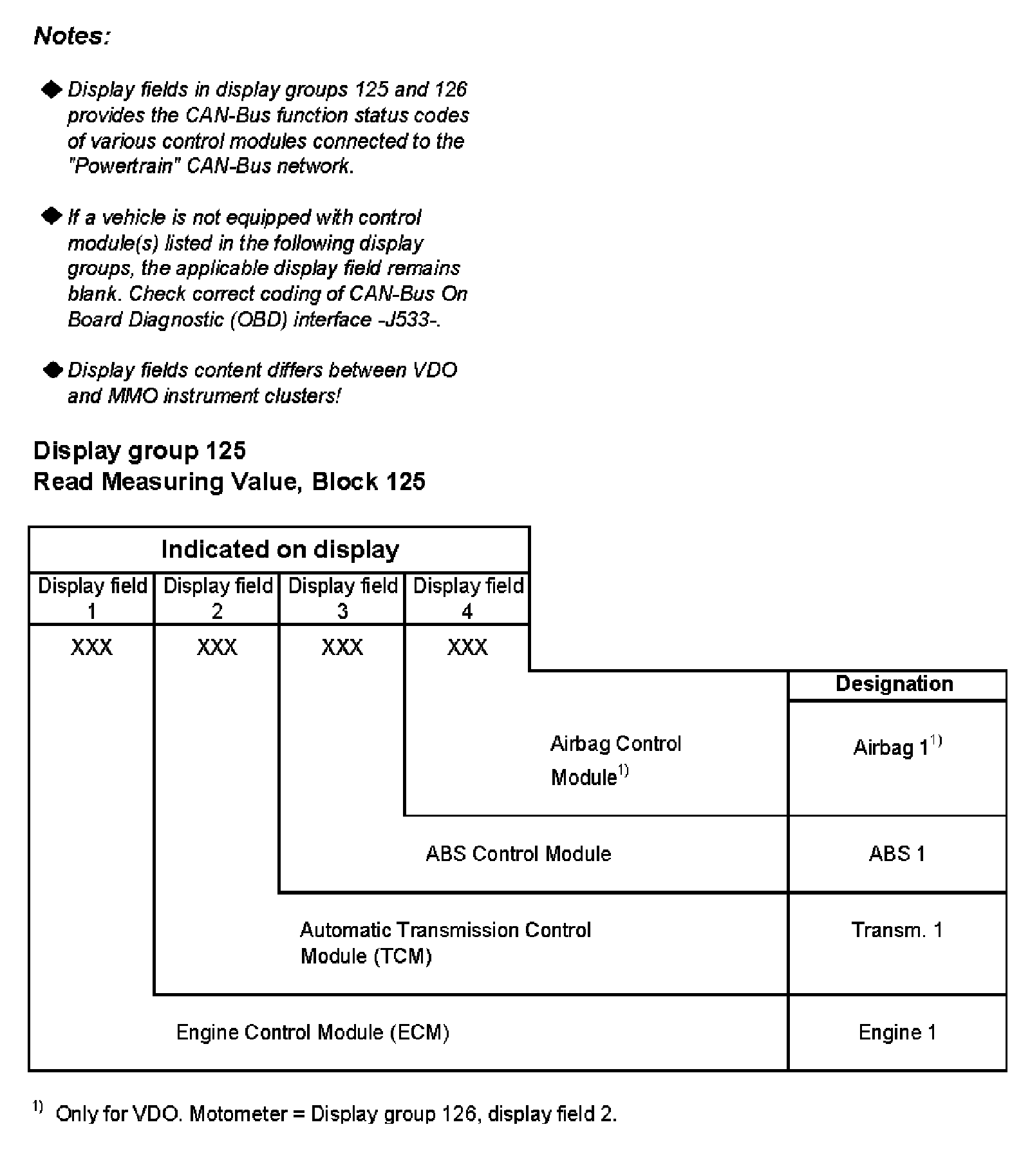

Display Group 125:

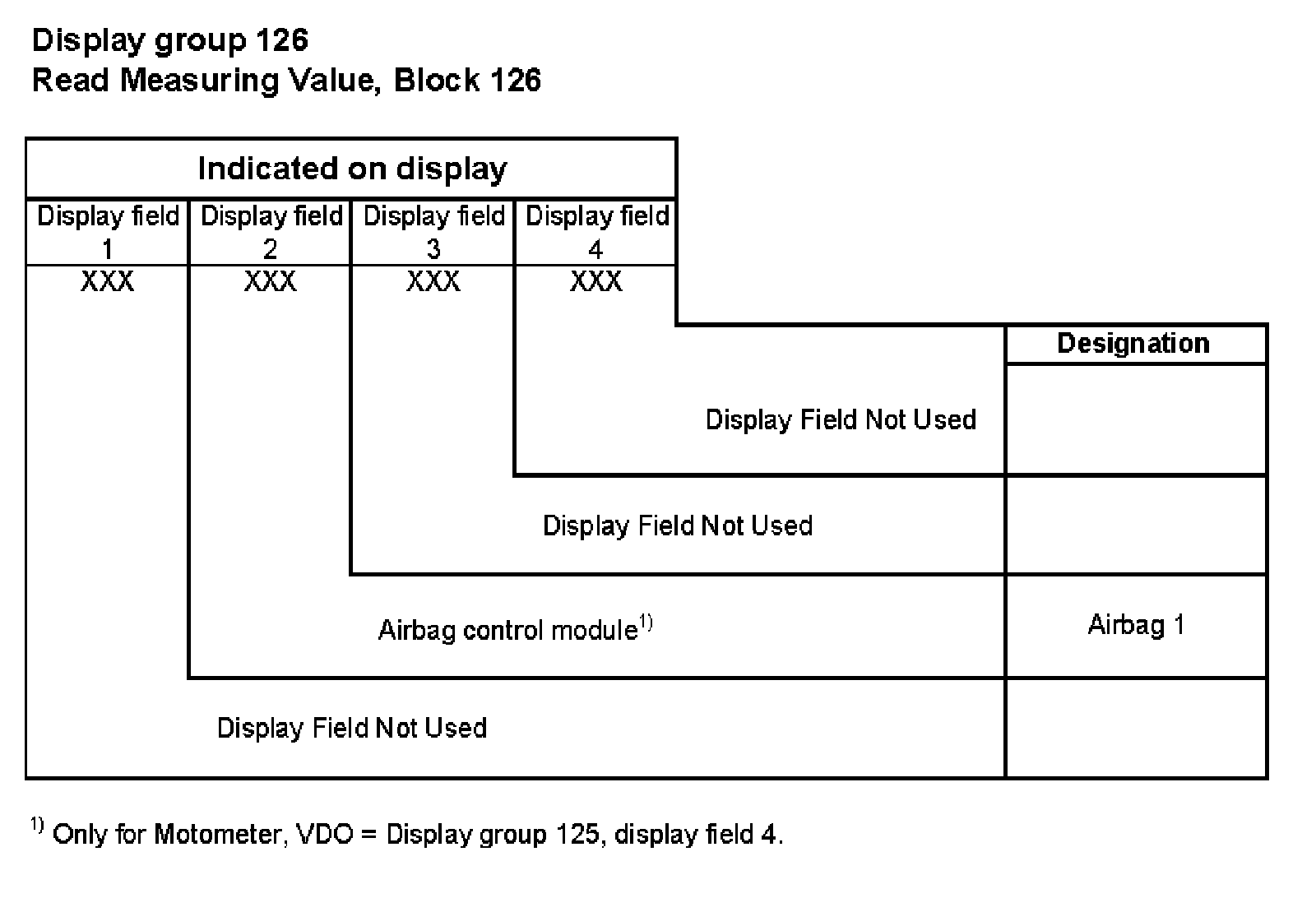

Display Group 126:
