Defroster Duct, Installation Position

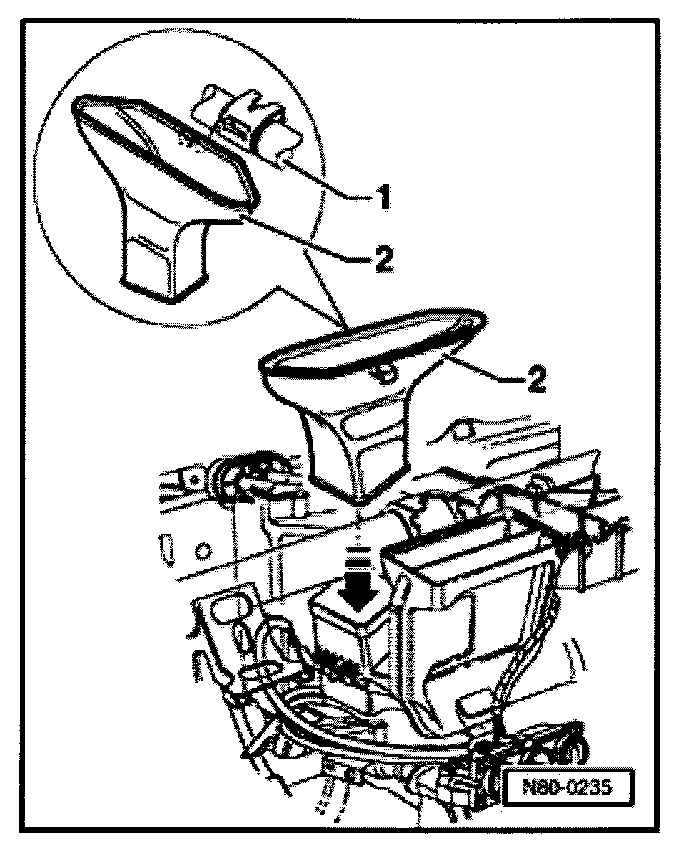

Defroster duct, installation position






- Attach defroster duct -2- to heater unit.
- At the same time position defroster duct -2- in instrument panel cross member -1-.
