Connecting Duct, Removing

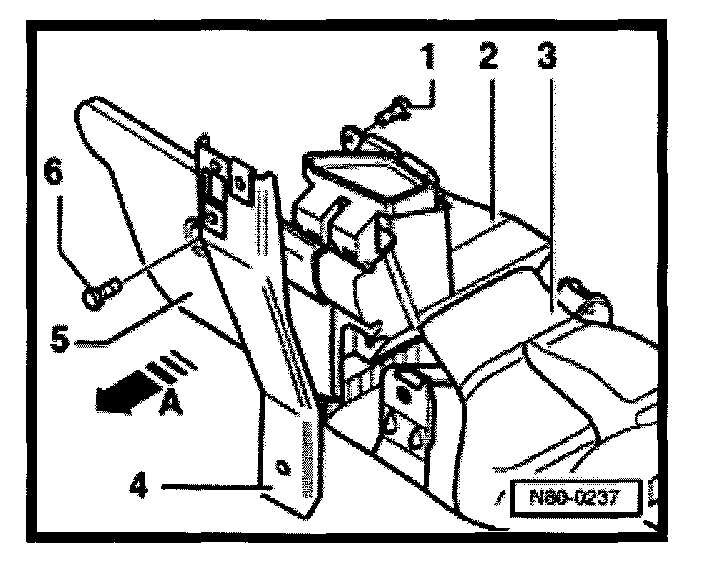

Connecting duct, removing






1 - Bolt
2 - Air duct connector
3 - Rear footwell duct
4 - Bracket
5 - Cover
6 - Bolt

First do the following:

- Remove glove box
- Remove steering column cover.

Removing

- Remove bracket -4-.
- Remove cover -5-.
- Remove duct in direction of footwell -arrow -A-.
