Central Flap Cable, Installing and Adjusting

Cables, Installing And Adjusting

Central flap cable, installing and adjusting






Prerequisites:

- Central flap lever correctly adjusted, See Fig. 1
- Heating and ventilation controls are installed.
- Connecting duct removed.

Adjusting

- Turn air distribution rotary control knob to left onto stop.

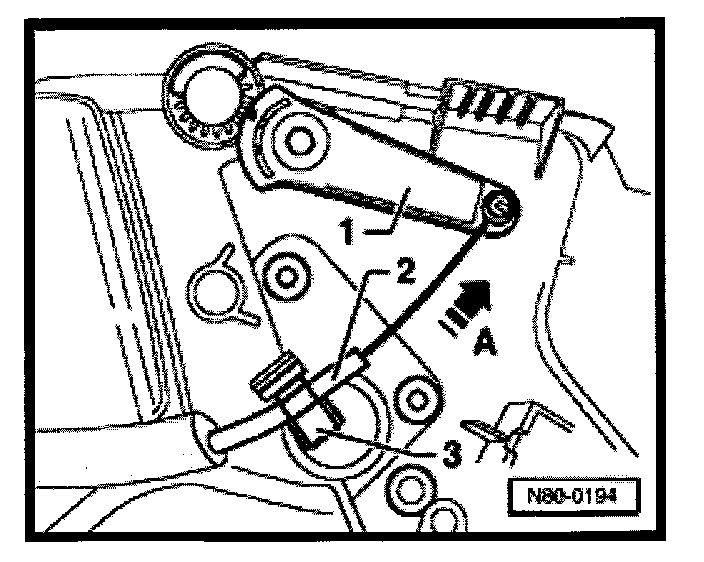

- Attach center wire of cable -2- to central flap lever -1-.
- Push central flap lever to stop -arrow A- and attach outer cable -2- with clip -3-.
- Turn air distribution rotary control knob to left and right onto stops.
- When turning the rotary control knob both end stops must be reached.
