Temperature Flap Motor -V68-, Removing and Installing

Temperature flap motor -V68-, removing and installing

First do the following:
- Remove glove box.
- Remove trim under steering column.
- Remove center console.

Removing

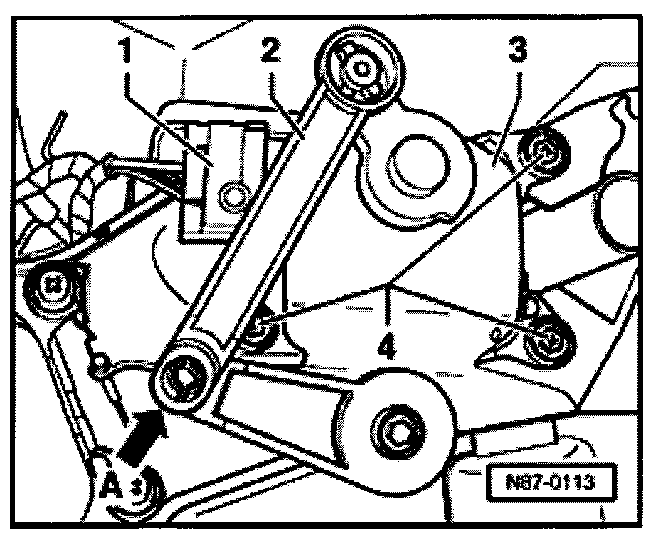

- Disconnect electrical connector -1-.
- With screwdriver, carefully unclip operating rod -2- from lever -arrow A-.
- Remove screws -4-.
- Remove flap motor -3-.

Installing and adjusting
- Initiate Basic setting, function 04 See Climatronic, OBD.
