Home >> Volkswagen >> 2000 >> Jetta Sedan (9M2) L4-1.8L Turbo (AWD) >> Repair and Diagnosis >> Diagrams >> Components >> All Components By ID Number >> Modules >> Central Control module for comfort system

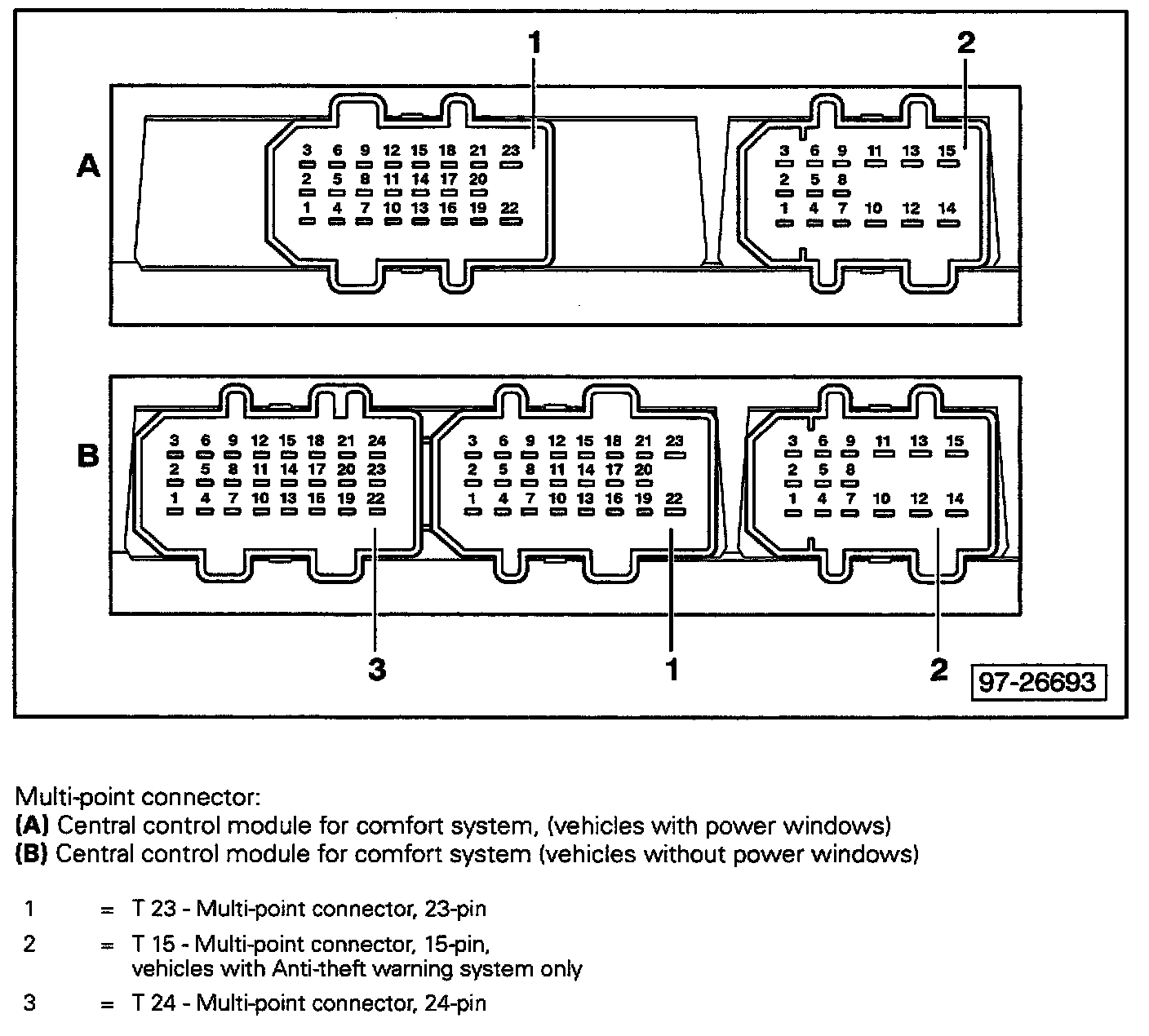

Central Control module for comfort system









- Behind instrument panel, left
