Removing and Installing

Removing
^ Remove trim below instrument panel.

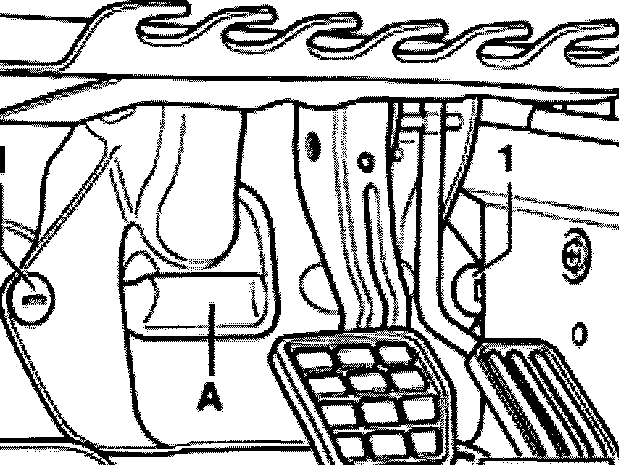

^ Remove screws -1-.
^ Remove cover -A-.





^ Remove connecting plate between clutch and brake pedals on vehicles with a manual transmission.

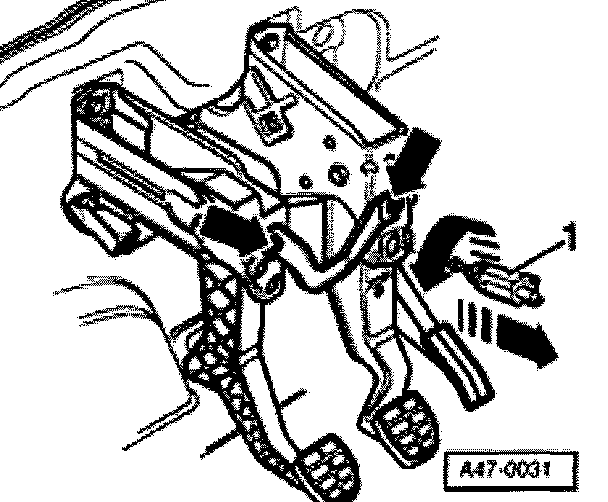

^ Remove brake light switch -1-.
^ Disconnect accelerator cable.
^ On vehicles with accelerator pedal position sensor, release connector below instrument panel.
^ Disconnect brake pedal from brake booster.
^ Remove hex nuts, item -2-.
^ Remove pedal cluster.
^ Remove brake pedal.

Installing
Install in reverse order of removal.
^ Adjust brake light switch
