Brake Pedal to Brake Booster, Disconnecting and Connecting

Special tools and equipment required





^ T 10006 Release tool

Additional information
^ Remove trim below instrument panel.





^ Remove screws -1-.
^ Remove cover -A-.

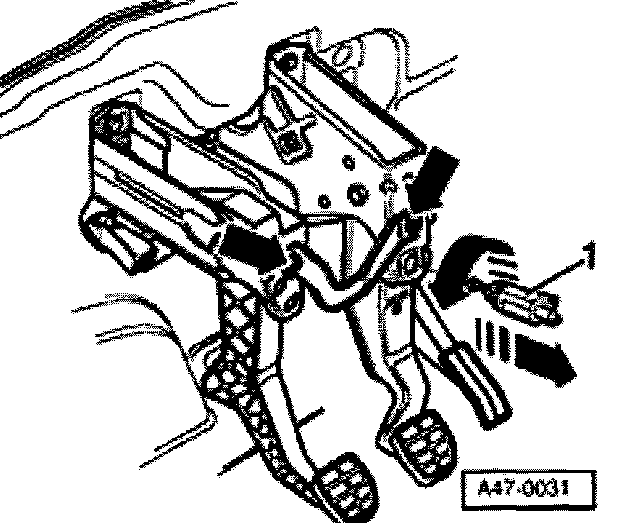

^ Remove connecting plate between clutch and brake pedals (arrows) on vehicles with a manual transmission.
^ Remove brake light switch -1-.





^ Press brake pedal in direction of brake booster and hold.
1 Brake pedal
2 Push rod
3 Retaining tabs

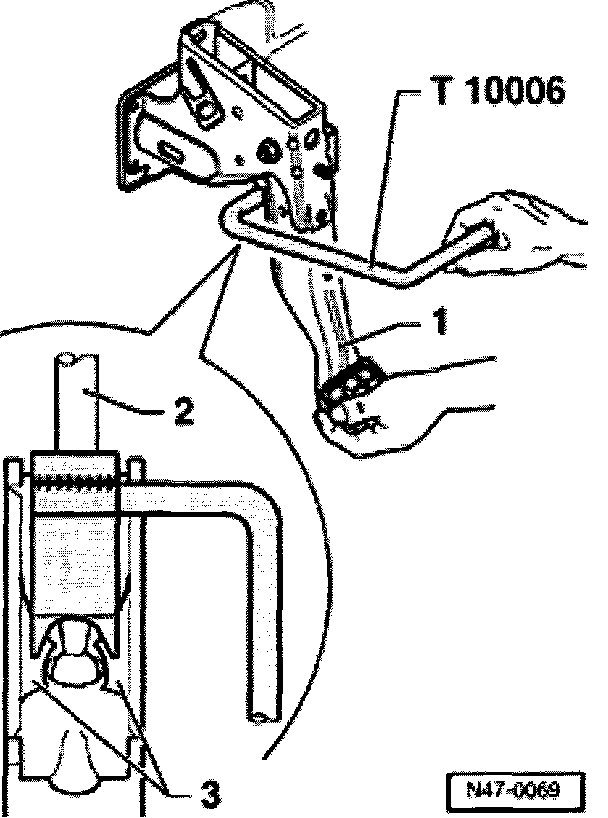

^ Insert special tool T 10006 and pull in direction of driver's seat while counter-holding on brake pedal -1-.

Notes:
^ Do not allow the brake pedal to move backward when pulling on special tool T10006.
^ The special tool presses the push rod head off the retaining tabs.
^ The illustration shows the pedal cluster removed.

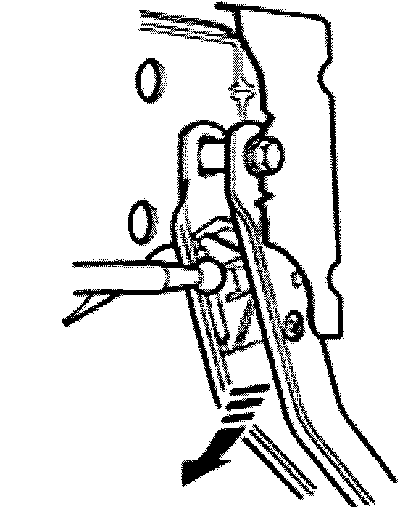

^ Pull special tool T 10006 and brake pedal towards driver's seat.

Note: The brake pedal will now be pulled off the push rod ball head.

Connecting





^ Hold push rod ball head in front of mounting and push brake pedal in direction of brake booster.
- Push rod ball must be heard to snap into place
Continue installation in reverse order of removal.
^ Adjust brake light switch
