Panel Seal, Replacing (Rockwell)

Panel Seal, Replacing

- Remove glass panel for sunroof.

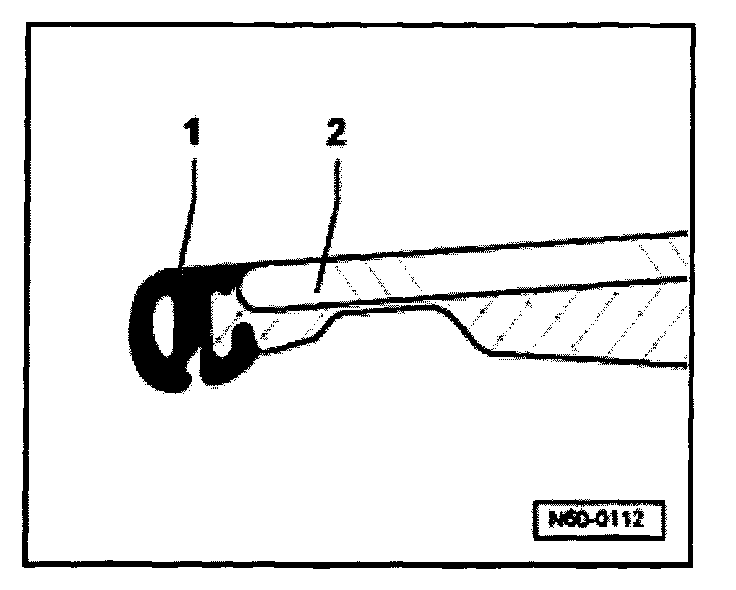

- Pull seal -1- off glass panel.
- Pull new seal onto glass panel -2- from bottom to top starting at center of rear.


NOTE:
- To ease installation of seal, coat panel edge with a soapy solution
- The surface of the seal will become wavy if incorrectly installed.
- The seal must be shortened to the correct length.
