Sunroof Glass Panel, Adjusting Height (Webasto)

Sunroof Glass Panel, Adjusting Height

Sunroof "0" position OK.

- Tilt sunroof open.
- Slide sliding headliner to rear.

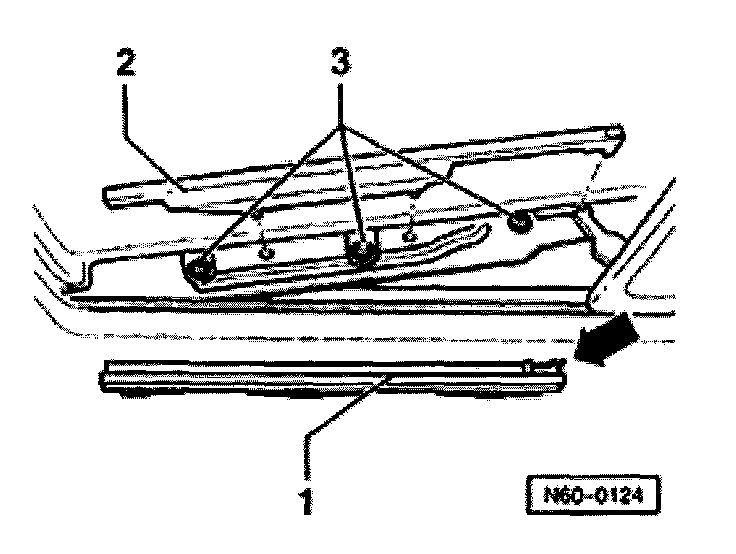

- Unclip lower trim -1- in rear area (arrow), slide forward and remove from roof frame.
- Unclip front and center of upper trim -2- and unhook at rear.
- Remove screws -3- (Torx insert T 25).
Tightening torque: 4.5 Nm (40 in. lb).
- Run glass panel into "closed" position, then open and close again. (The correct order is important for the correct adjustment)
- Adjust height of glass panel at front and rear on both sides as follows:







Panel adjustment front:
a = 0 - 1 mm lower than roof
Arrow = Direction of travel (forward)

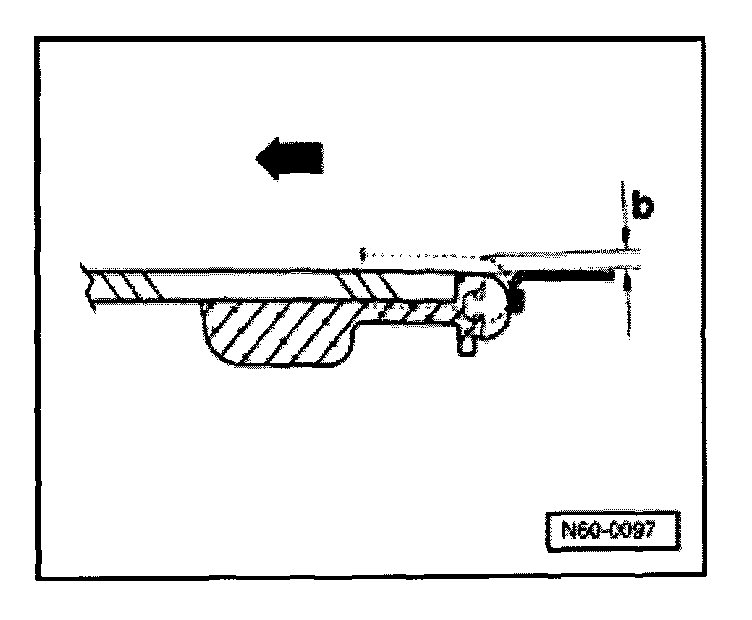

Panel adjustment rear:
b = 0 - 1 mm higher than roof
Arrow = Direction of travel (forward)

- Tighten screws for glass panel to 4.5 Nm (40 in. lb).

Always tighten left and right-hand glass panel sides symmetrically.

- Tilt sunroof open.







- Hook upper trim -2- in at rear and clip in at center and front.
- Slide lower trim -1- indirection of arrow into rear elongated hole and clip in front section.
