Panel Seal, Adjusting (Rockwell)

Panel Seal, Adjusting

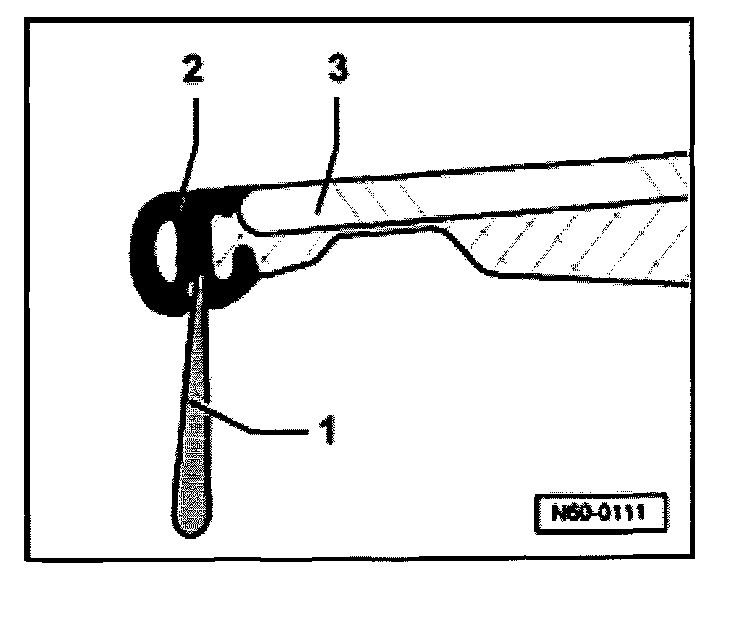

- Check that pre-tension between panel seal -2- and body is uniform all around using a 0.3 mm thick strip of paper (a business card for example). It must be possible to pull the paper strip through between the panel seal and body under tension.
- If pre-tension is too low, push panel seal apart with wedge -1- or, if pre-tension is excessive, push together.


NOTE: Glass panel -3- must be removed to adjust panel seal.
