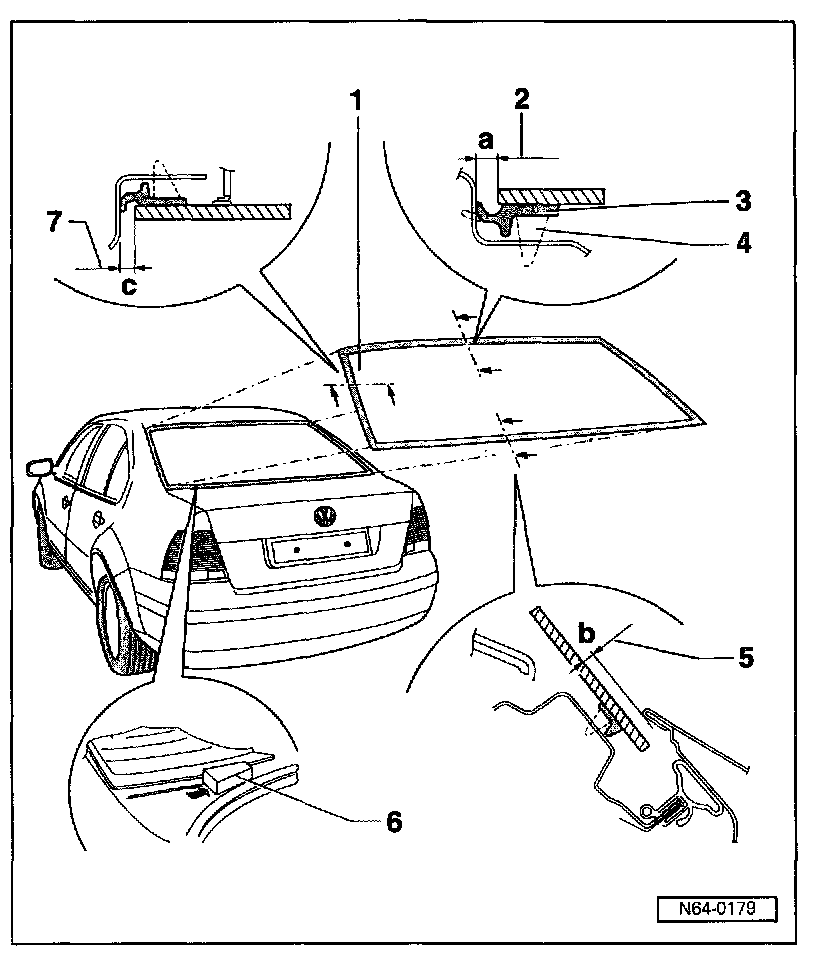

Rear Window, Assembly Overview

1 - Rear window
2 - Dimension a = 3 mm (0.19 in.)
3 - Sealing lip (component part of pre-coating)
4 - PUR adhesive sealant
- Cross section of bead: Width = 7 mm (0.28 in.); Height = 11 mm (0.43 in.) (including pre-coating, residual material on glass and window flange
- Curing time Curing Time
5 - Dimension b = 6.5 mm (0.255 in.)
- Check gap measurement with gauge 3371
6 - Window adjuster
- Part No. 443 845 631 A
7 - Dimension C = 3 mm (0.19 in.)
