Bass Loudspeakers, Front and Rear

To replace a loudspeaker, the door trim or side panel must first be removed. Service and Repair

- Disconnect harness connector.

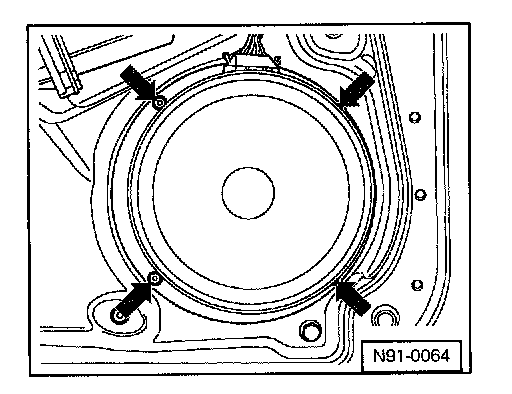

- Drill off pop rivets (arrows) with appropriate drill and remove defective speaker.

NOTE: Remove all drill shavings from door or corrosion damage will occur. If paint damage occurs during drilling, repair immediately

- Secure new speaker using special pop rivets of appropriate length and diameter (note part number!).

Do not forget rubber ring between trim and loudspeaker when reinstalling door trim.
