Multi-Pin Connector With Contact Assignment

Multi-pin connector with contact assignment

Note: All contacts not listed are currently not assigned and must never be connected to other components!

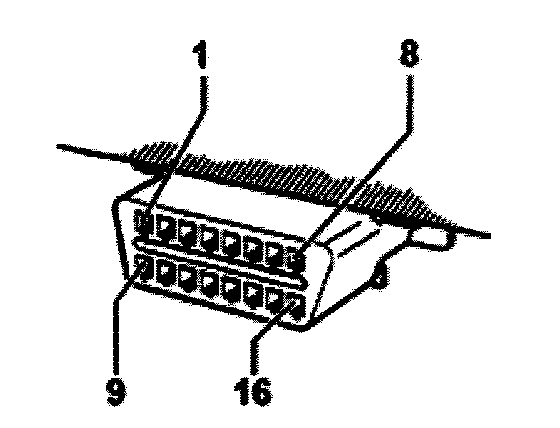

Contact assignment of connectors for voltage supply and On Board Diagnostic (OBD) with V.A.G 1551 Scan Tool
Contact 4 = Ground (terminal 31)
Contact 16 = Positive (terminal 30) to S12
Contact 7 = K wire to contact 7 of multi-pin connector T25 of control module -J104

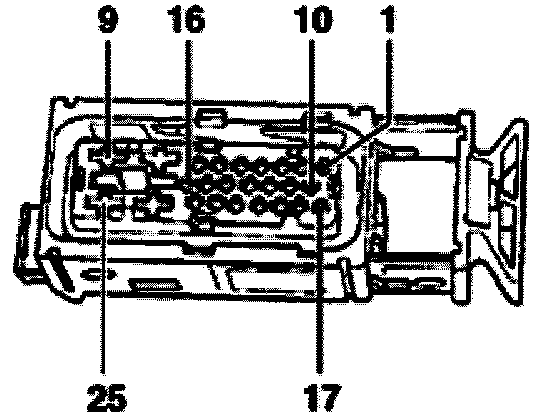

Contact assignment of connector T25 wiring harness/control module - J104

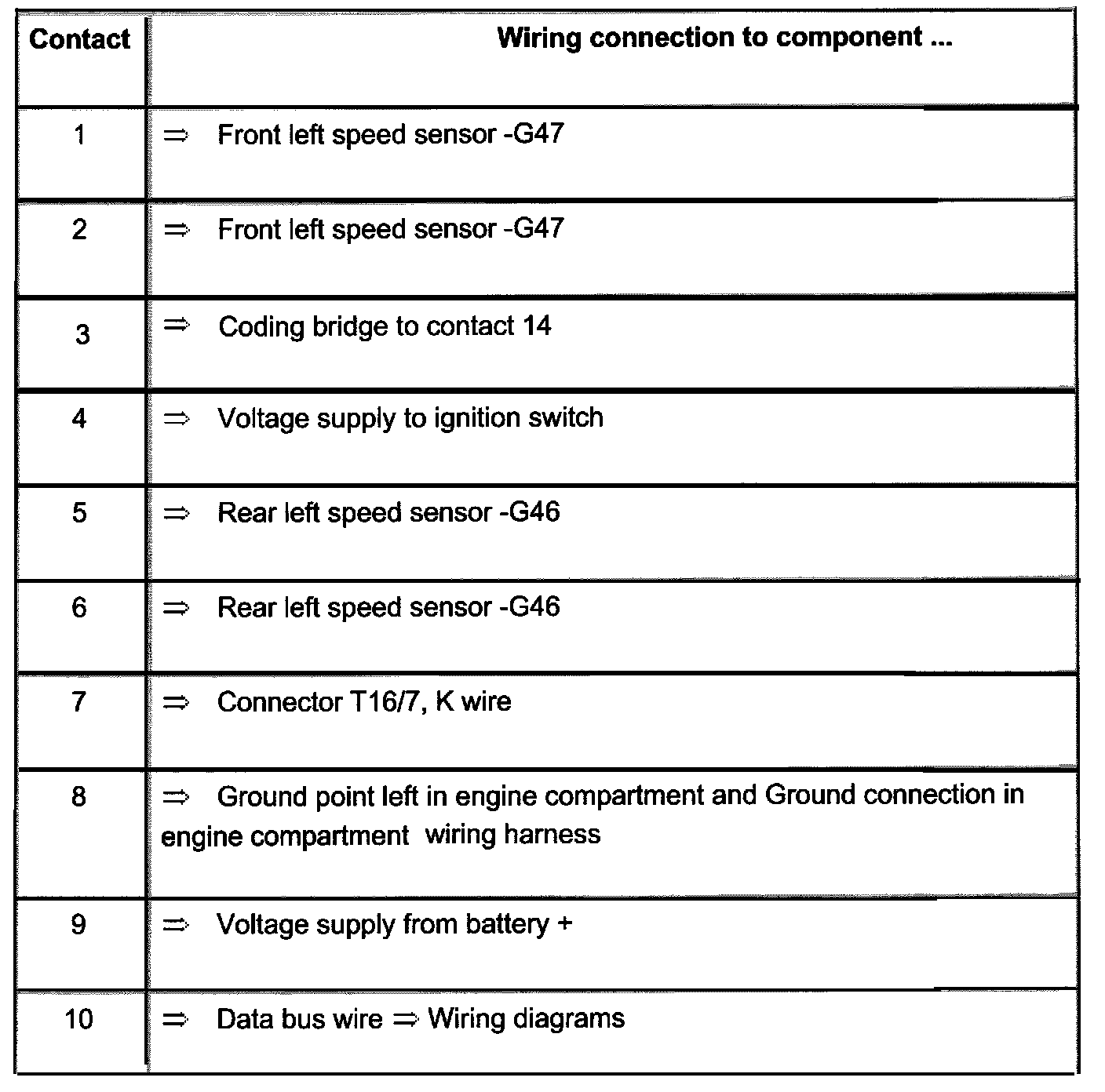

Contact 1 through 10

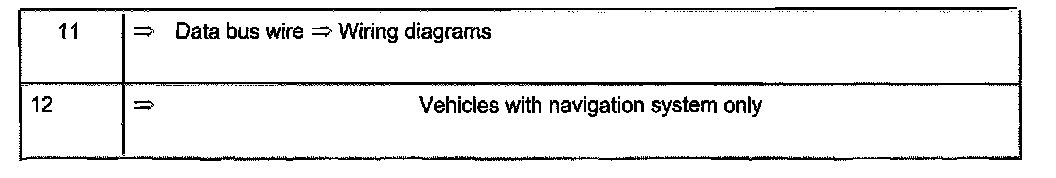

Contact 11 and 12

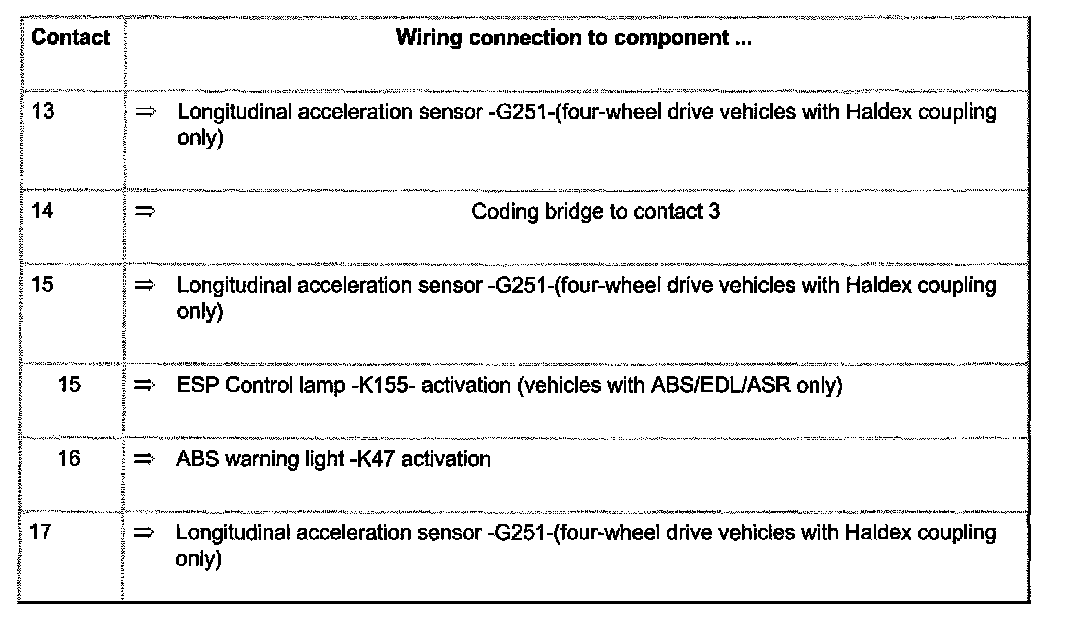

Contact 13 through 17

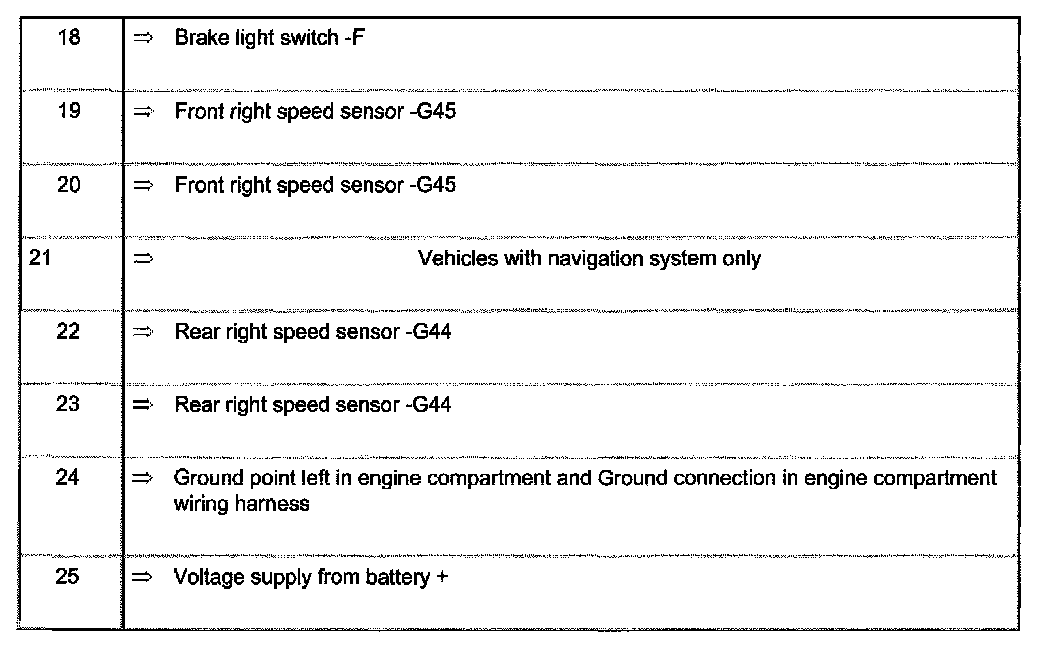

Contact 18 through 25

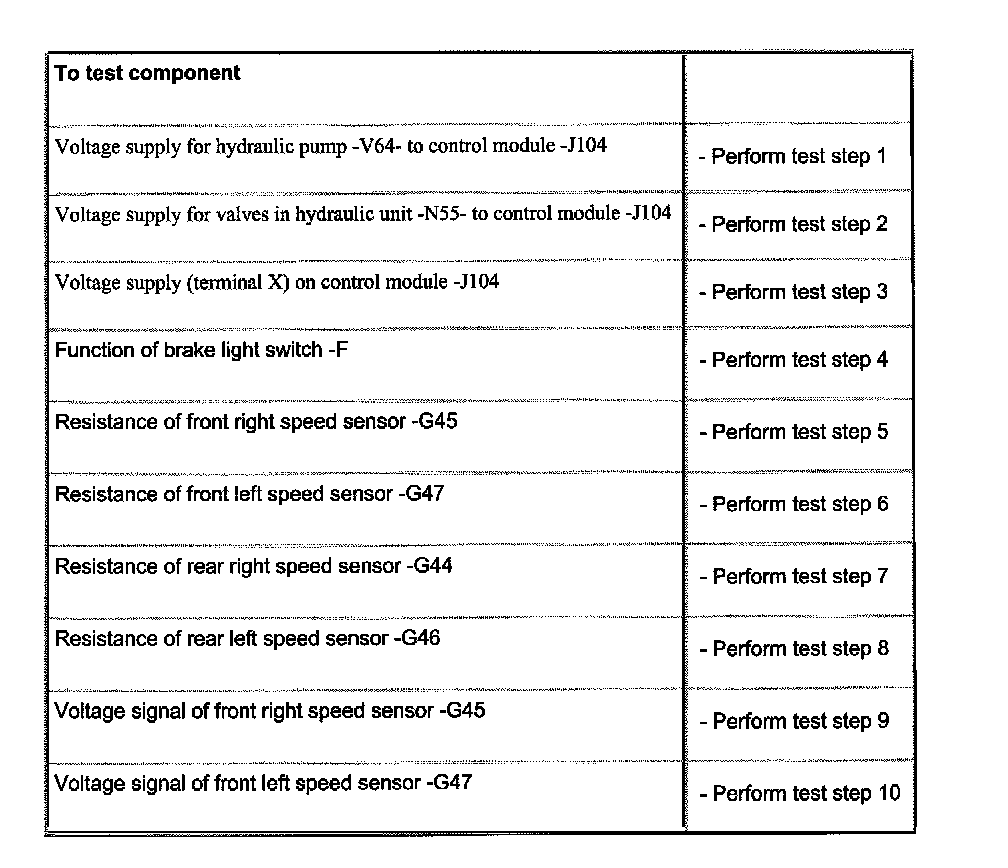

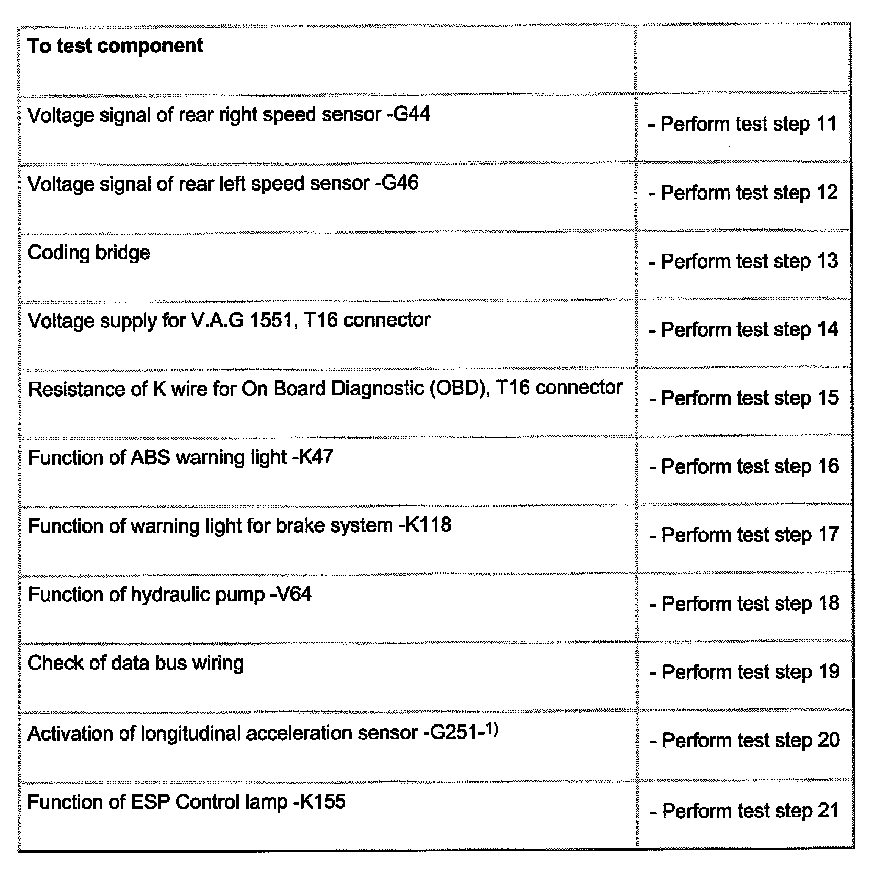

Test components
1) Four-wheel drive vehicles with Haldex coupling only.
