Shift Cable: Service and Repair

5 Speed Manual 02J

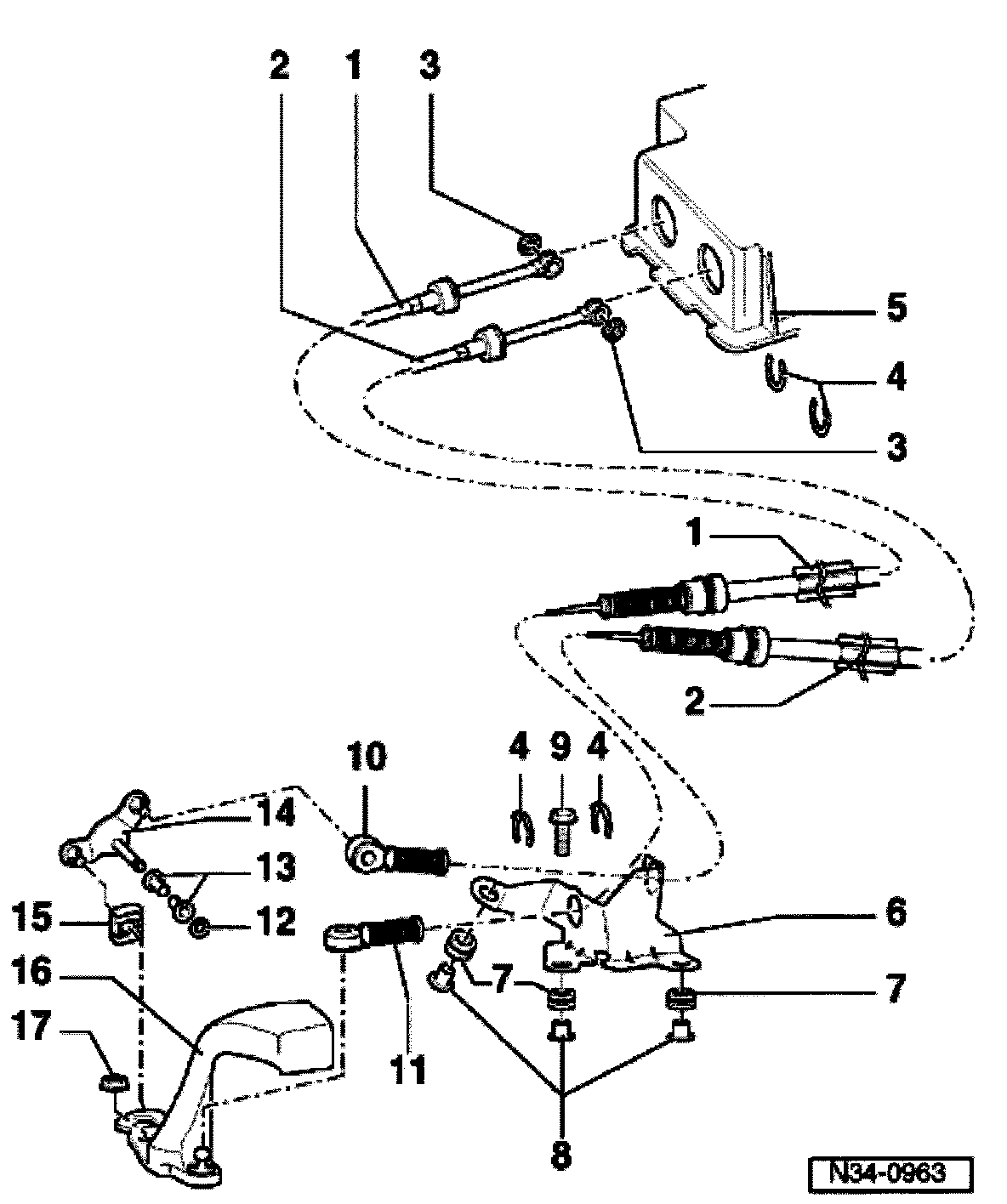

Selector cables, removing and installing

Note: Lubricate all mountings and sliding surfaces with Polyurea grease Part No. G 052 142 A2.





1. Gear selector cable
- Press onto gear shift guide
- Installation position
2. Gate selector cable
- On gate selector bracket
- Installation position
3. Circlip
4. Circlip
- Do not damage cable when removing
5. Selector housing
6. Support bracket
7. Bushing
- Support bracket mounting to transmission
8. Distance piece
9. Hex bolt, 25 Nm
- For support bracket
10. Cable locking mechanism
- For gate selector cable to relay lever
- Replace after removing from relay lever -item 14
- From 01.01 with holes
- Not necessary to be replaced
- Secured with securing clip
- Removing and installing
11. Cable locking mechanism
- For gear selector cable to gear selector lever
- Replace after removing from transmission selector lever -item 16 -
- From 01.01 with holes
- Not necessary to be replaced
- Secured with securing clip
- Removing and installing
12. Circlip
13. Bushing
14. Relay lever
- Installation position
15. Shoe
16. Transmission - selector lever
- With balance weight
- Install so that master spline aligns with selector shaft
- After installing adjust gear selector mechanism
- Installation position
17. Hex nut, 20 Nm
- Always replace

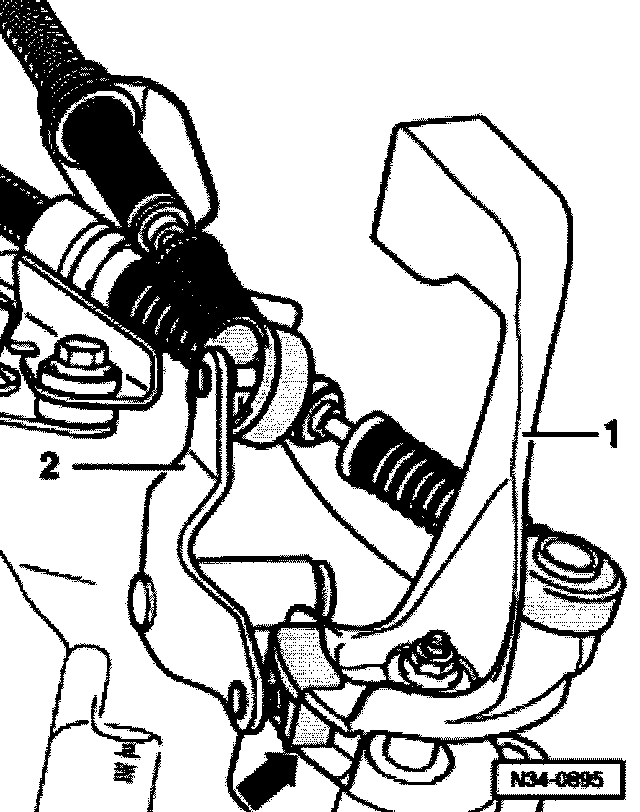

Installation position of transmission selector lever/relay lever
1. Gear selector lever
- With balance weight
2. Relay lever
- Locates in guide rail of gear selector lever via shoe (arrow)
