Draining

Torque Converter, Draining
Special Tools And Equipment





- VAG 1358 A Oil extractor

If the torque converter has become fouled by abrasion or when performing a major overhaul of the transmission, drain the torque converter as follows:

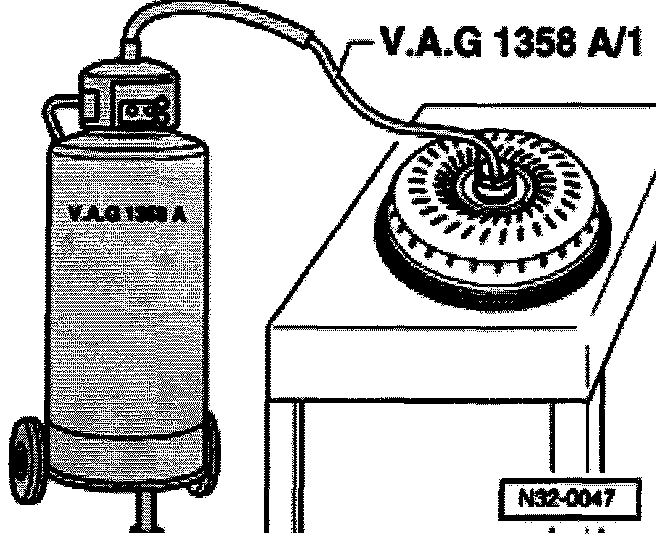

- Extract ATF from torque converter using VAG 1358 A and probe VAG 1358 A/1.
