Home >> Volkswagen >> 2000 >> Golf (1J1) L4-1.8L Turbo (AWD) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Application and ID >> Fuse Arrangements In Fuse Holder, Instrument Panel Left

Fuse Arrangements In Fuse Holder, Instrument Panel Left

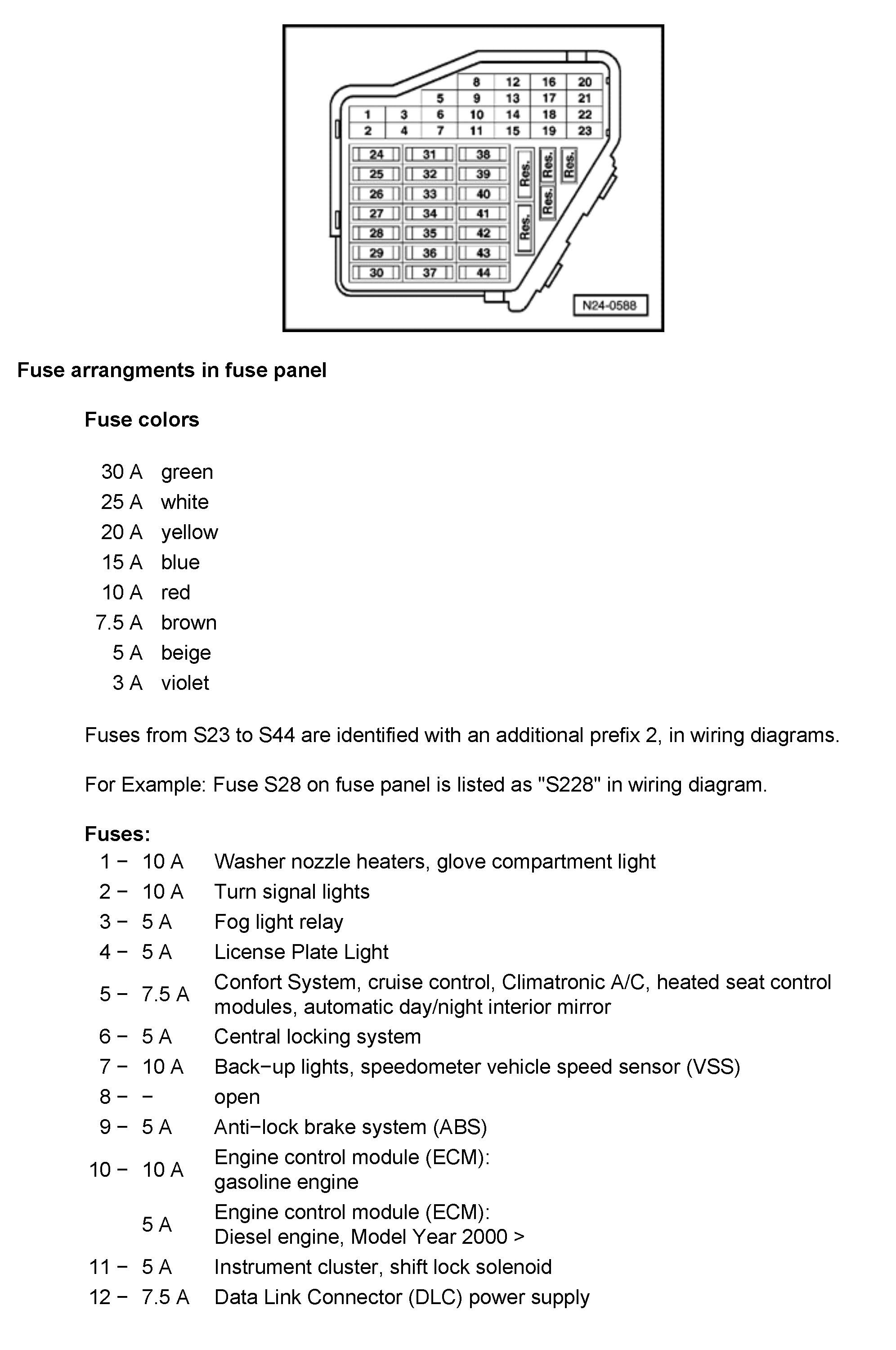

Fuse arrangements in fuse holder, instrument panel left
