Home >> Volkswagen >> 2000 >> Golf (1J1) L4-1.8L Turbo (AWD) >> Repair and Diagnosis >> Restraints and Safety Systems >> Relays and Modules - Restraints and Safety Systems >> Air Bag Control Module >> Locations

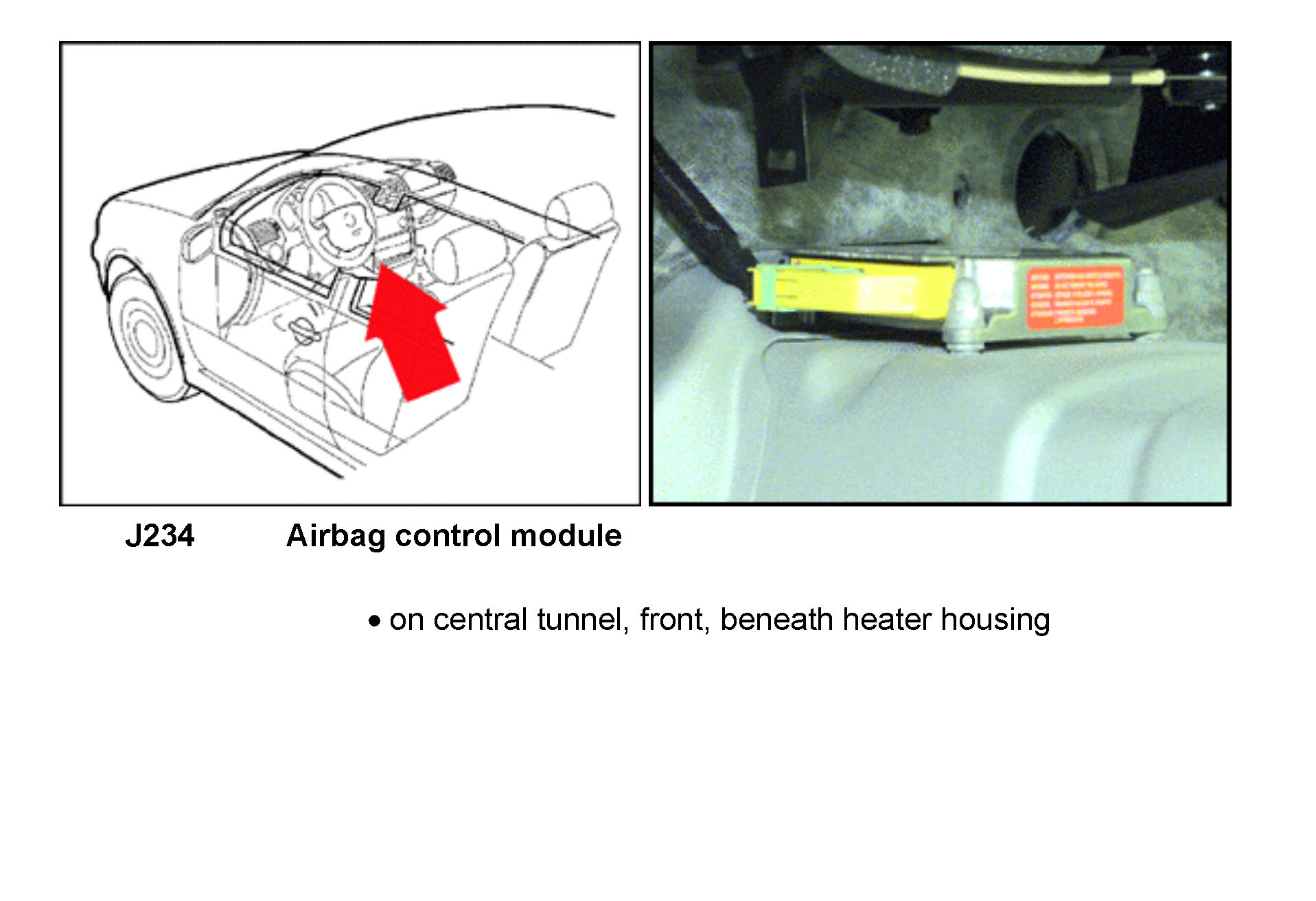

Air Bag Control Module: Locations












J234 - Airbag control module
