Clutch Coil, Installing



A/C Clutch -N25- (Sanden), Removing And Installing

Clutch coil, installing

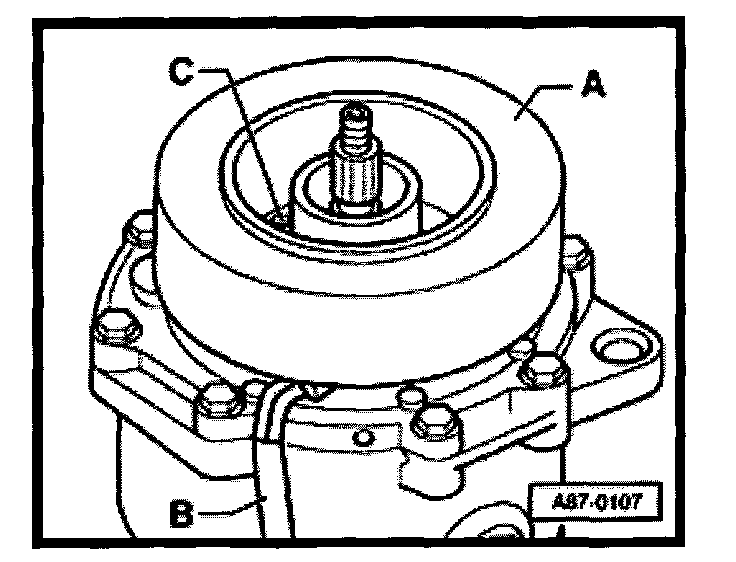

- Install coil on compressor.
- Locate locking pin on coil coil -A- into recess -C-.
