Servo Motor For Fresh/Recirculating Air Door - V154 -

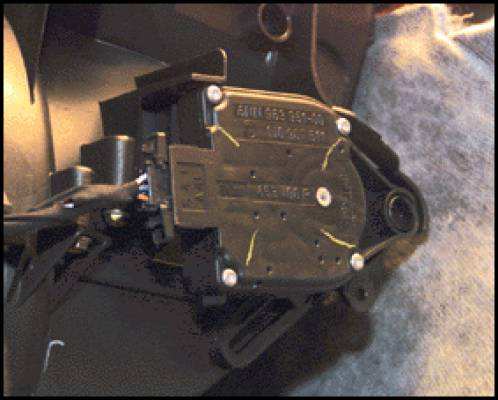

V154 - Servo Motor For Fresh/Recirculating Air Door

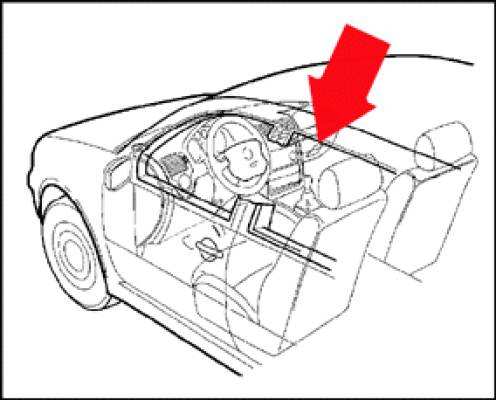

- forward of glove box, to right of fresh air blower housing
