Seat Bottom Cover







- Remove seat bottom.

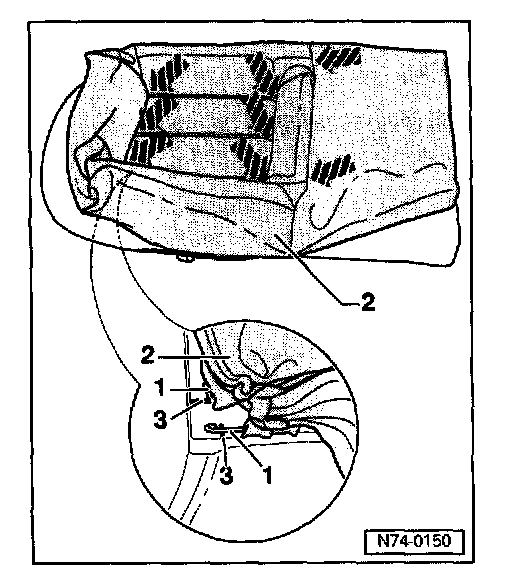

- Release cover -2- beading -1- from seat cushion frame -3-.





- Release cover -2- tensioning wire -1- from padding wire -3-.
- Take off cover -2-.
