Lower B-Pillar Trim, Removing and Installing

Lower B-pillar Trim, Removing And Installing

NOTE: Removal and installation is described for right side of vehicle. same instructions apply for removal and installation for left-hand side.

Removing

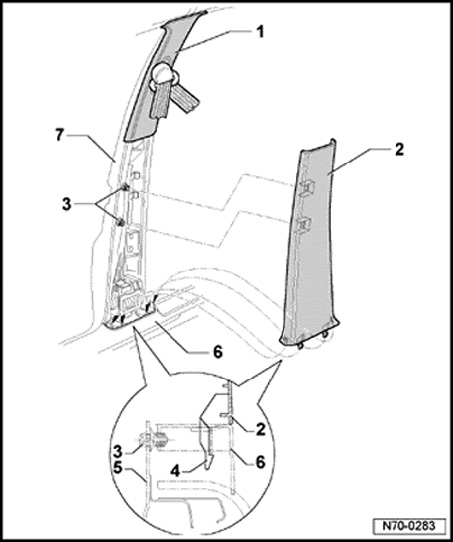

- Loosen lower B-pillar trim - 2 - first at sides, then in center of B-pillar - 7 -.







- Remove lower B-pillar trim - 2 - upward out of sill panel trim - 6 - with hooks - 4 -.







Installing
- Installation is reverse of removal.

NOTE:
- For safety, steel clips - 3 - and upper C-pillar trim must be replaced every time trim panel of C-pillar is removed on a vehicle with side curtain airbags.
- Steel clips and upper C-pillar trim parts can no longer be ordered separately for vehicles with side curtain protection - parts catalog.
