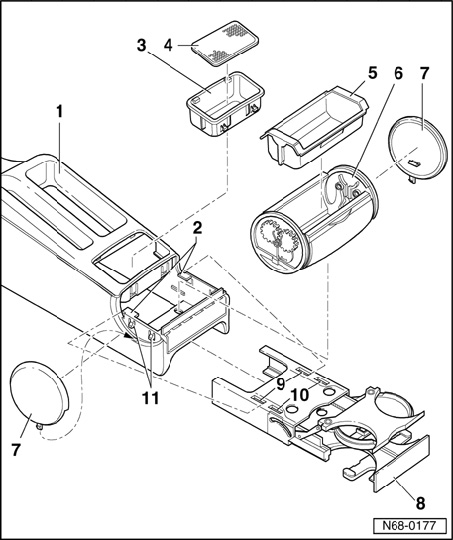

Rear Ashtray, Assembly Overview

Rear Ashtray, Assembly Overview







1 - Center console extension
2 - Retaining tabs
3 - Storage compartment
- Not in front armrest

4 - Storage compartment mat
- Not in front armrest

5 - Ashtray insert
6 - Ashtray
7 - Caps
- Qty. 2

8 - Beverage holder
9 - Catches
- in front of retaining tabs - 2 -

10 - Catches
- Behind retaining tabs - 2 -

11 - Locking lugs
