Trunk / Liftgate Release Lever: Service and Repair

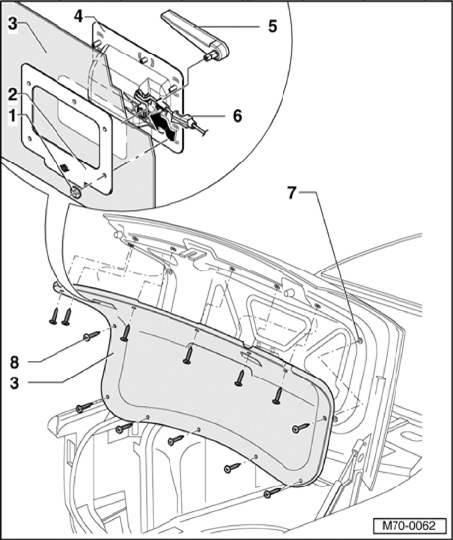

Trunk Escape Handle, Removing And Installing

Removing
- Unclip up clip - 6 - and release cable Bowden - arrow -.
- Clamping washer - 1 -.
- Qty. 6

- Remove frame - 2 -.
- Remove handle support - 4 - from rear lid trim.
- Release escape handle - 5 - from handle support - 4 -.

Installing







Install in reverse order of removal.
