Upper Rear Lid Trim, Removing and Installing (Golf)

Upper Rear Lid Trim, Removing And Installing (Golf)

Removing
- Remove lower rear lid trim.

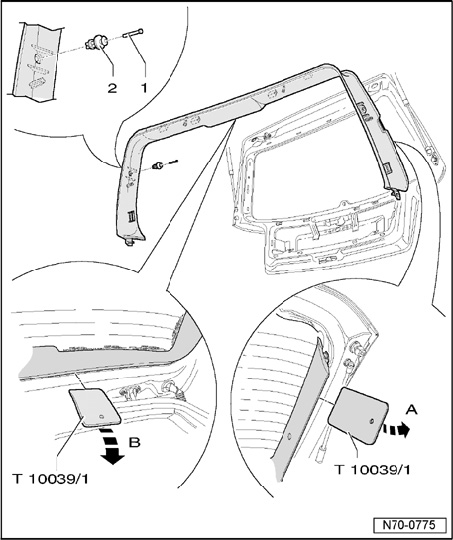

- At right and left sides, remove spreader pin - 1 - from rear shelf bracket - 2 -.
- Using Wedge T10039/1, lift trim at sides out of mounts in lid - arrow A -.
- Using Lever T10039, lift trim at upper edge out of mounts - arrow B -.

NOTE: Before installation, securing clips must be checked for damage and replaced if necessary.







Installing
- Installation is reverse of removal.
