Control Unit In Steering Wheel -E221-, Removing and Installing

Control Unit In Steering Wheel -E221-, Removing And Installing


WARNING!
Special safety precautions apply to vehicles equipped with airbags. Refer to Repair Manual, Body-Interior, Airbag: CAUTIONS and WARNINGS, Repair Group 69.


CAUTION!
Before working on the electrical system:
- Determine the correct coding for the anti-theft radio.
- Switch the ignition off
- Disconnect the battery Ground (GND) strap.
- After reconnecting battery, re-code and check operation of anti-theft radio. Also check operation of clock and power windows according to Repair Manual and/or Owner's Manual.


Removing

- Remove driver's airbag.

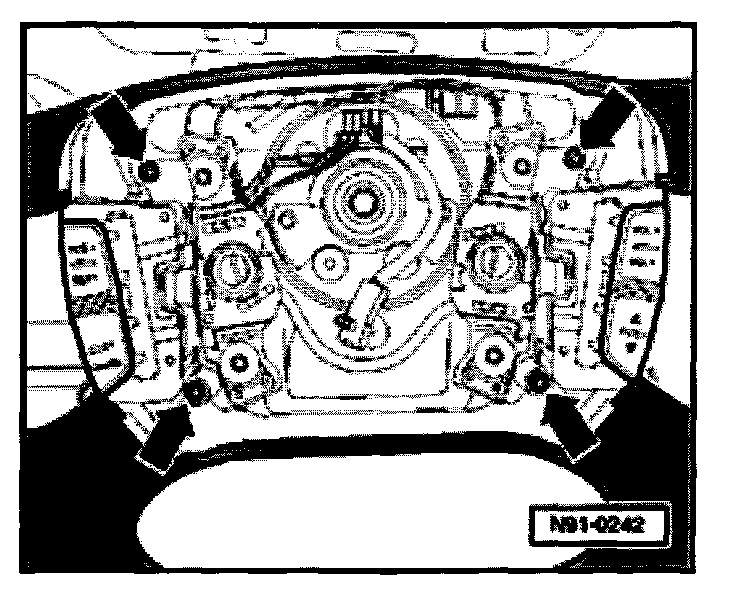

- Remove bolts -arrows- from operating unit.

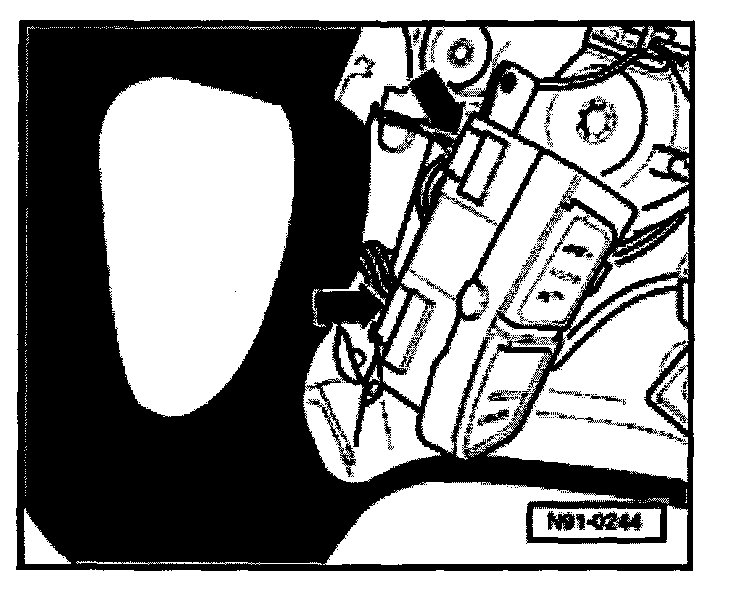

- Disconnect electrical connections -arrows
- Remove unit from steering wheel.

Installing

- Install in reverse order of removal.
