Turn Signal Bulb: Service and Repair

Front Turn Signal Bulb, Replacing

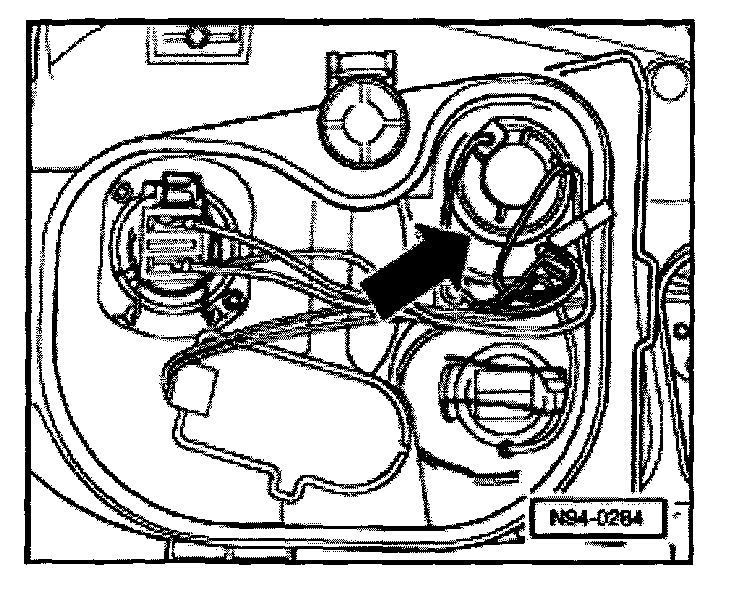

- Release spring clip -arrow- and remove sealing cover.






- Turn bulb holder -arrow- to left and pull out of housing.
- Remove bulb from holder.

Install in reverse order of removal.

NOTE:

- When installing, ensure bulb holder engages in bulb housing.

Check turn signal (bulb) function.
