Fog/Driving Lamp Bulb: Service and Repair

Fog Light Bulb, Replacing

CAUTION!

- Do not touch glass portion of bulb with bare hands. Even the smallest amount of moisture and/or contaminants from fingers that evaporates on the bulb during operation can cause the glass to cloud over.

- Switch off all electrical consumers, switch off ignition key and remove ignition key.






- Release spring clip -arrow- and remove sealing cover.

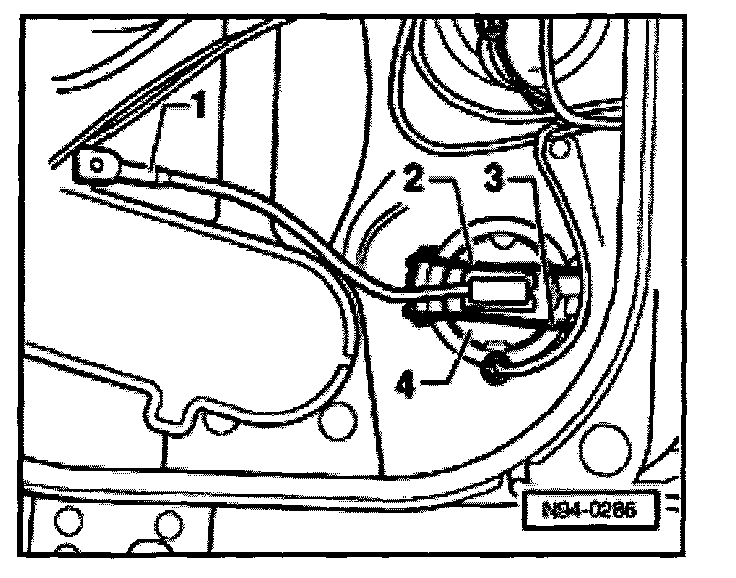

- Disconnect electrical connection -1- from bulb.
- Push retaining clip -2- over lugs -3- and release.
- Pull bulb -4- out of reflector.
- Do not touch bulb glass when installing.
- Insert new bulb so lugs on bulb plate align with cut-outs in the reflector.
- Connect electrical connector -1-.
- Install sealing cover.
- Check fog light (bulb) function.
