Front Seat Backrest Cover and Padding

Removing

NOTE: Removal and installation procedures may have to be modified slightly depending on equipment variants.

- Remove head restraint.
- Remove seat.
- Remove backrest.
- Unclip bottom of trim on rear of back rest and unhook upwards.

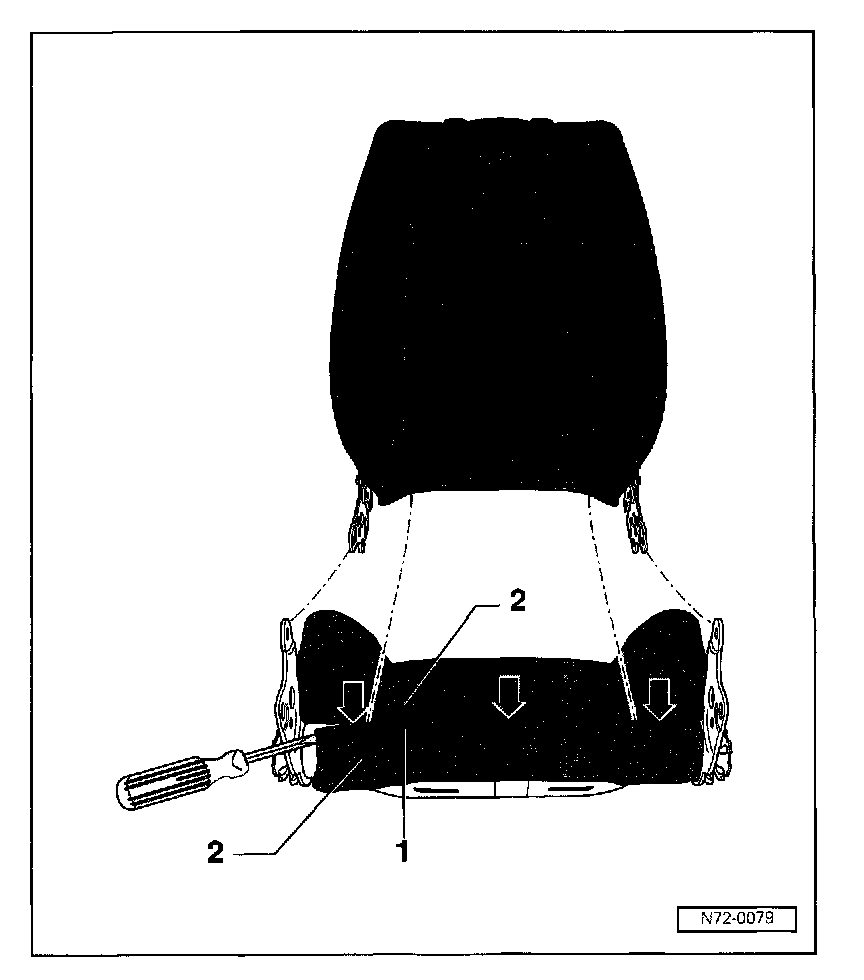

- Separate beading strip -1- of cover -2- using screwdriver -arrows-.

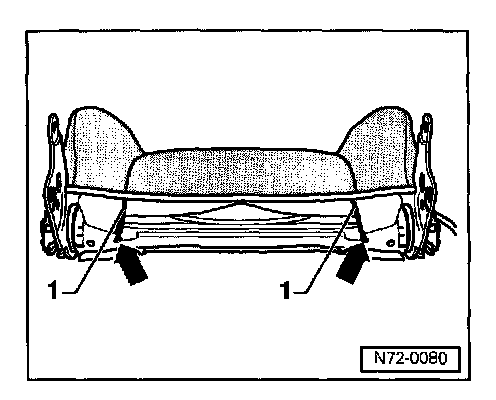

- Unhook tensioning wire -1- -arrows-.





- Pry off adjusting knob -1-.





- Pull up cover -1- and release from tensioning frame -2- -arrows-.
- Pull cover -1- up over padding -3- and head restraint guides.
- Separate connector -4- for backrest heater, if necessary.
- Pull padding -3- off backrest -5-.

NOTE: Padding -3- is connected to lumbar frame -4- with Velcro(R) bands.

Installing
Install in reverse order of removal
