Right Backrest Cover

Removing

NOTE: Illustration shows right-hand backrest, left-hand backrest can be removed by modifying these procedures slightly.

- Remove head restraint.
- Remove right-hand backrest and center armrest.

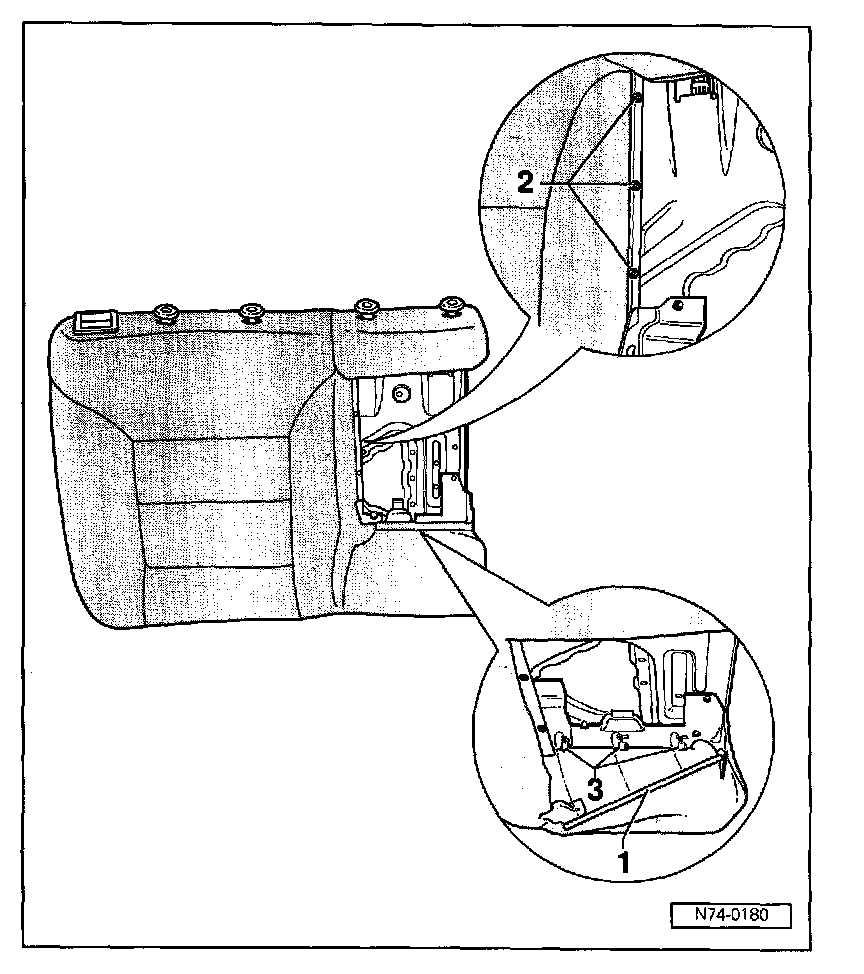

- Pull out three clips -2-.
- Release beading -1- from locking hooks -3-.





- Release cover -1- around backrest frame -2- -arrows-.





- Take cover -1- and padding -2- from backrest frame -3-.
- Separate tensioning wire -4- and padding wire -5-, -arrows-.
- Take cover -1- off padding -2-.

Installing
Install in reverse order of removal.
