Side Trim, Removing and Installing (Golf 2-Door)

Side Trim, Removing And Installing (Golf 2-Door)

NOTE: Removal and installation is described for right side of vehicle. same instructions apply for removal and installation for left-hand side.

Removing
- Remove seat.
- Remove backrest.

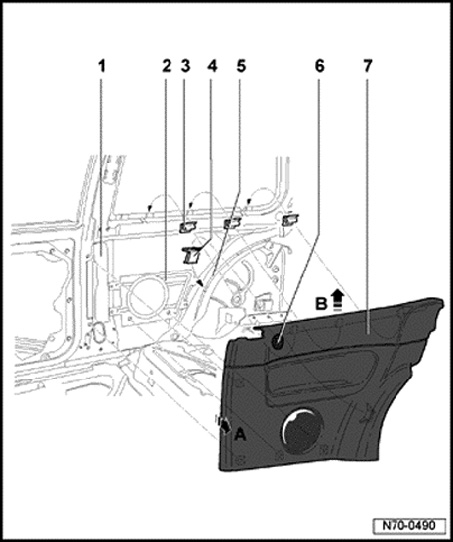

- Unclip side trim - 7 - from B-pillar - 1 - and from bracket - 2 - for speaker - arrowA -.







- Pull side trim - 7 - slightly upward - arrowB - and disconnect any harness connectors for speaker - 6 -.







Installing
Installation is reverse of removal.

NOTE:
- Before installing side trim, check clips - 3 - and - 4 - for damage and replace if necessary.
- Clip - 4 - connects side trim - 7 - to body flange - 5 - for wheel housing.
