Right Luggage Compartment Side Trim, Removing and Installing (Golf)

Right Luggage Compartment Side Trim, Removing And Installing (Golf)

Removing

CAUTION: Disconnect battery ground (GND) strap before working on electrical system.

NOTE: Before disconnecting battery see note concerning radio anti-ft coding in Owners Manual.

- Switch ignition off.
- Remove right seat backrest.
- Remove wheel housing trim.
- Remove rear lock carrier cover.

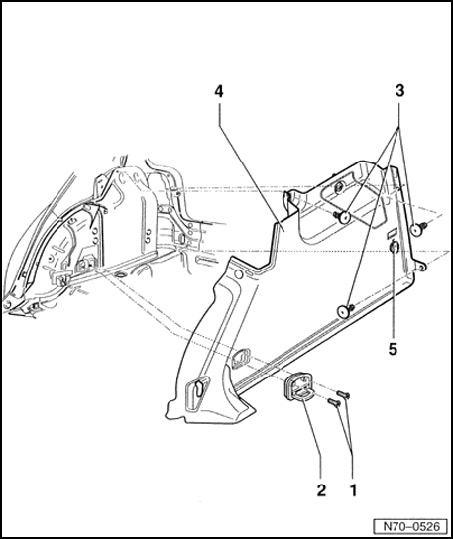

- Remove bolts - 1 - and remove tie-down - 2 -.
- Remove three plugs - 3 -.







- Loosen luggage compartment trim - 4 - and disconnect harness connectors.







Installing
- Installation is reverse of removal.

NOTE:
- Before installing trim, check plugs -3-for damage and replace if necessary.
- After connecting battery, check vehicle equipment (radio, clock, electric windows) as per Repair Manual and/or Owners Manual.
- If engine Electronic Control Module (ECM) is subject to low voltage with ignition on, DTC memory and Readiness code must be checked.
