Front Door Window Triangular Trim (With Speaker)

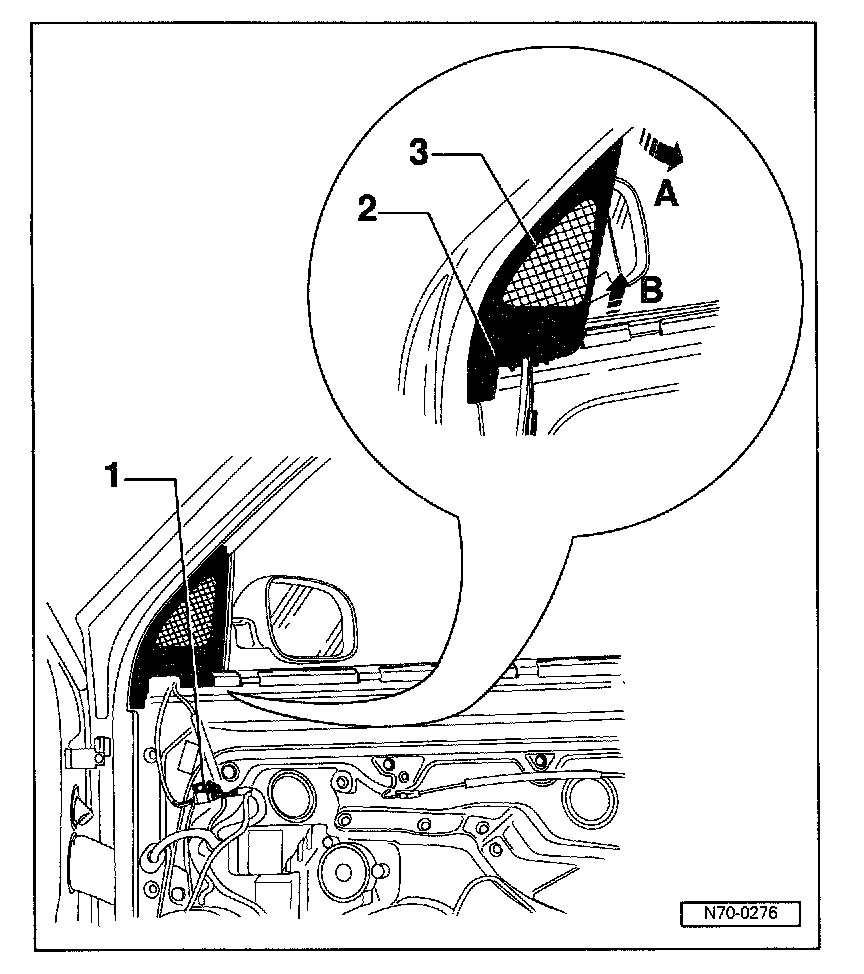

- Remove front passenger's side door trim.
- Separate speaker connector -1-.
- Remove screw -2-.
- Pull top of speaker -3- off -arrow A- and separate from door -arrow B-.

NOTE: The mirror triangle has another mounting point underneath and can only be pushed upward.
