Upper C-Pillar Trim, Removing and Installing (Golf Without Side Curtain Protection)

Upper C-pillar Trim, Removing And Installing (Golf Without Side Curtain Protection)

NOTE: Removal and installation is described for right side of vehicle. same instructions apply for removal and installation for left-hand side.

Removing
- Remove support, luggage compartment cover.
- Remove roof end strip.

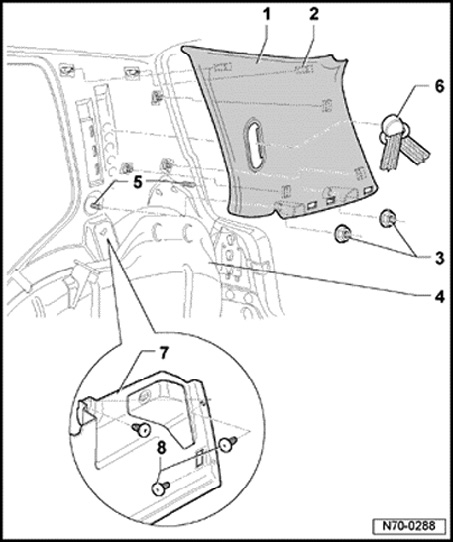

- Unclip plugs - 8 - from C-pillar.
- Remove trim - 1 - from C-pillar at top.
- Remove speed nuts - 3 - from both studs - 5 -.

NOTE: two speed nuts - 3 - are hidden between body flange of wheel housing - 4 - and C-pillar trim - 1 -.







- Unclip trim - 1 - from C-pillar.







Installing
- Installation is reverse of removal.
