Upper C-Pillar Trim, Assembly Overview (Golf Without Side Curtain Protection)

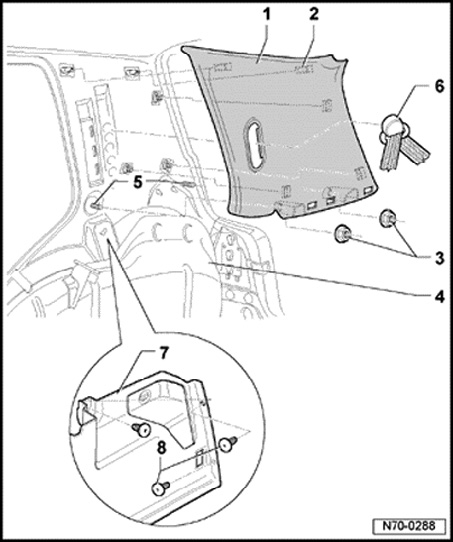

Upper C-pillar Trim, Assembly Overview (Golf Without Side Curtain Protection)







1 - Upper C-pillar trim
2 - Securing clips
- Qty. 5

3 - Speed nuts
4 - Wheelhousing
5 - Studs
- Qty. 2

6 - Belt relay
7 - Lower trim
8 - Plugs
