Upper B-Pillar Trim, Removing and Installing (Vehicles Without Side Curtain Protection )

Upper B-pillar Trim, Removing And Installing (Vehicles Without Side Curtain Protection)

NOTE: Removal and installation is described for right side of vehicle. same instructions apply for removal and installation for left-hand side.

Removing

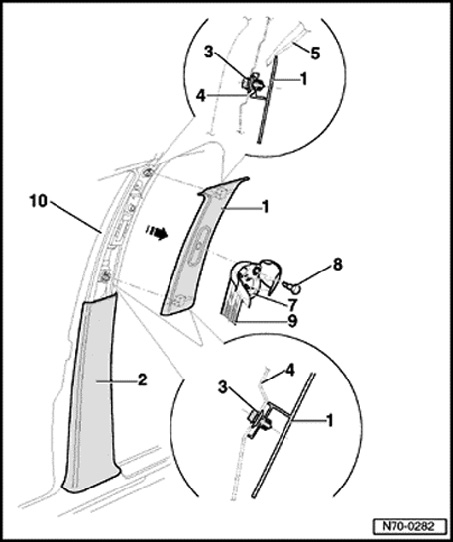

- Remove cap - 6 -.
- Remove bolt - 8 - and remove belt relay - 7 -.
- Loosen lower B-pillar trim - 2 - in upper area - arrow -.







- Loosen upper B-pillar trim - 1 - first at sides, then in center of B-pillar - 4 - - arrow -.







Installing
- Installation is reverse of removal.

NOTE:
- For safety, steel clips - 3 - and upper C-pillar trim must be replaced every time trim panel of C-pillar is removed on a vehicle with side curtain airbags.
- Steel clips and upper C-pillar trim parts can no longer be ordered separately for vehicles with side curtain protection - parts catalog.
