Upper B-Pillar Trim, Assembly Overview (Vehicles Without Side Curtain Protection )

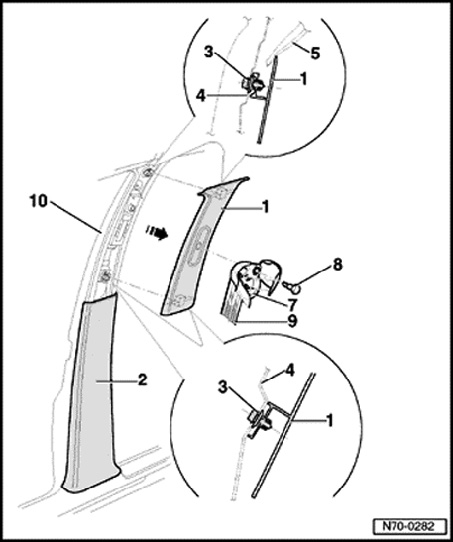

Upper B-pillar Trim, Assembly Overview (Vehicles Without Side Curtain Protection)







1 - Upper B-pillar trim
2 - Lower B-pillar trim
3 - Securing clip
4 - B-pillar
5 - Molded headliner
6 - Cover cap
7 - Belt relay
8 - Bolt
- 40 Nm

9 - Belt webbing
10 - B-pillar
