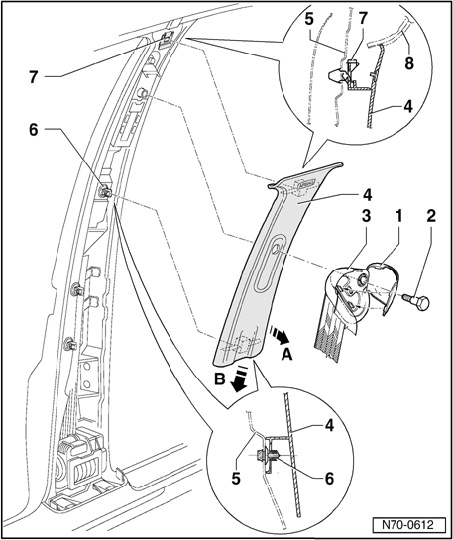

Upper B-Pillar Trim, Assembly Overview (Vehicles With Side Curtain Protection)

Upper B-pillar Trim, Assembly Overview (Vehicles With Side Curtain Protection --> 04.01)







1 - Cover cap
2 - Bolt
- 40 Nm

3 - Belt relay
4 - B-pillar trim
5 - B-pillar
6 - Mounting clip
7 - Steel clip
8 - Molded headliner
