Upper A-Pillar Trim, Removing and Installing (Vehicles Without Side Curtain Protection )

Upper A-pillar Trim, Removing And Installing (Vehicles Without Side Curtain Protection)

Removing

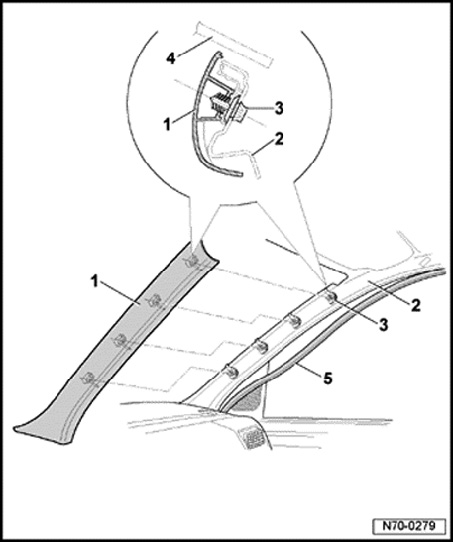

- Remove inner door seal - 5 - from A-pillar - 2 -.







- Unclip trim - 1 -, starting at top, from A-pillar - 2 - and remove.







Installing
- Installation is reverse of removal.

NOTE:
- For safety, steel clips - 3 - and upper C-pillar trim must be replaced every time trim panel of C-pillar is removed on a vehicle with side curtain airbags.
- Steel clips and upper C-pillar trim parts can no longer be ordered separately for vehicles with side curtain protection - parts catalog
