Upper A-Pillar Trim, Assembly Overview (Vehicles Without Side Curtain Protection)

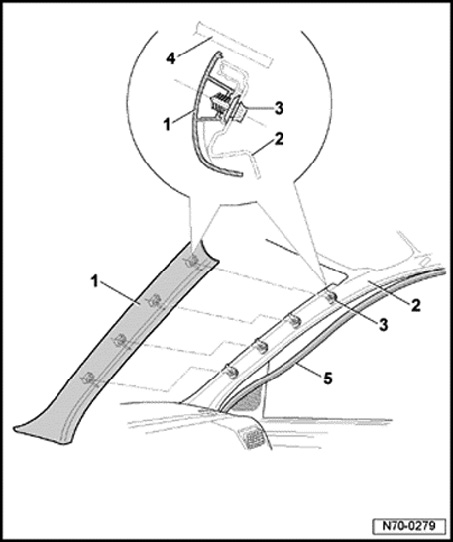

Upper A-pillar Trim, Assembly Overview (Vehicles Without Side Curtain Protection)







1 - Trim
2 - A-pillar
3 - Clip
4 - Windshield
5 - Door inner seal
